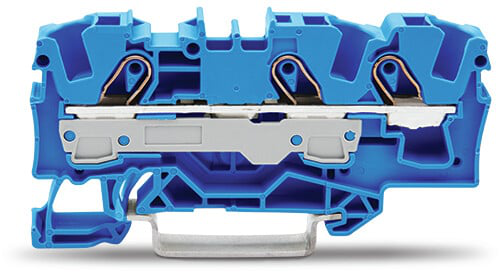

WAGO 20061304 3-conductor terminal block
The WAGO 2006-1304 is a 3-conductor through terminal blocks designed for use in Ex e II and Ex i applications, ensuring safety and reliability in hazardous environments. It utilizes WAGO’s Push-in CAGE CLAMP® connection technology for quick and secure terminations. The terminal block is suitable for mounting on DIN-rail 35 x 15 and 35 x 7.5, and is marked on both the center and side for easy identification. With a nominal cross-section of 6 mm², it accommodates a wide range of conductor sizes and materials, making it a versatile solution for various industrial applications.
WAGO 20061304 3-conductor terminal block Specifications:
- rated_voltage_iii_3: 800 V
- rated_impulse_voltage_iii_3: 8 kV
- rated_current: 41 A
- rated_current_2: 57 A
- ratings_legend: (III / 3) ≙ Overvoltage category III / Pollution degree 3
- rated_voltage_ul_use_group_b: 600 V
- rated_current_ul_use_group_b: 50 A
- rated_voltage_ul_use_group_c: 600 V
- rated_current_ul_use_group_c: 50 A
- rated_voltage_csa_use_group_b: 600 V
- rated_current_csa_use_group_b: 50 A
- rated_voltage_csa_use_group_c: 600 V
- rated_current_csa_use_group_c: 50 A
- rated_voltage_en_ex_e_ii: 550 V
- rated_current_ex_e_ii: 36 A
- rated_current_ex_e_ii_with_jumper: 33 A
- connection_technology: Push-in CAGE CLAMP®
- actuation_type: Push-in
- connectable_conductor_materials: Copper
- nominal_cross_section: 6 mm²
- solid_conductor: 0.5 … 10 mm² / 20 … 8 AWG
- solid_conductor_push_in_termination: 2.5 … 10 mm² / 14 … 8 AWG
- fine_stranded_conductor: 0.5 … 10 mm² / 20 … 8 AWG
- fine_stranded_conductor_ferrule_plastic_collar: 2.5 … 6 mm² / 16 … 10 AWG
- fine_stranded_conductor_ferrule_push_in_termination_from: 2.5 … 6 mm² / 16 … 10 AWG
- strip_length: 13 … 15 mm / 0.51 … 0.59 inch
- total_number_of_connection_points: 3
- total_number_of_potentials: 1
- number_of_levels: 1
- type_of_wiring: Front-entry wiring
- number_of_jumper_slots: 2
- width: 7.5 mm / 0.295 inch
- height_from_upper_edge_of_din_rail: 32.9 mm / 1.295 inch
- depth: 73.5 mm / 2.894 inch
- design: horizontal
- type_of_mounting: DIN-35 rail
- marking_level: Center/side marking
- color: blue
- insulating_material: Polyamide 66 (PA 66)
- fire_load: 0.193 MJ
- weight: 11.8 g
- product_group: 22 (TOPJOB S)
- packaging_type: BOX
- country_of_origin: DE
- gtin: 4017332999694
- customs_tariff_no: 85369010000
