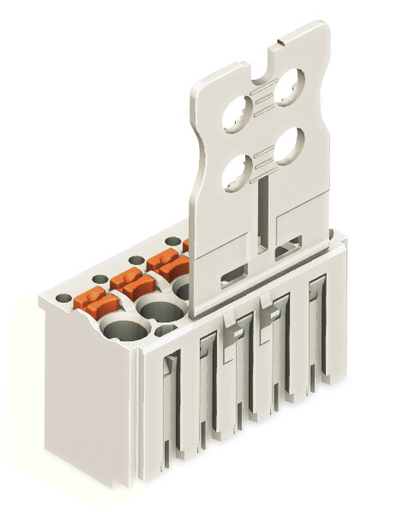

WAGO 209111020001000 2-pole Female Connector
The WAGO 2091-1102/000-1000 is a 2-pole female connector designed for versatile conductor connections in various industrial applications. Its push-button termination simplifies wiring, eliminating the need for special tools. The integrated locking latches prevent accidental disconnection, ensuring reliable performance. This connector is ideal for applications requiring secure and easy-to-manage connections in control panels, machinery, and automation systems. It is compatible with a range of conductor sizes and offers robust performance under various environmental conditions.
WAGO 209111020001000 2-pole Female Connector Specifications:
- Rated Voltage (III/3): 160 V
- Rated Surge Voltage (III/3): 2.5 kV
- Rated Voltage (III/2): 160 V
- Rated Surge Voltage (III/2): 2.5 kV
- Nominal Voltage (II/2): 320 V
- Rated Surge Voltage (II/2): 2.5 kV
- Rated Current: 10 A
- Solid Conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
- Fine-Stranded Conductor: 0.2 … 1.5 mm² / 24 … 14 AWG
- Fine-Stranded Conductor with Insulated Ferrule: 0.25 … 0.75 mm²
- Fine-Stranded Conductor with Uninsulated Ferrule: 0.25 … 1.5 mm²
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Pole No.: 2
- Total Number of Potentials: 2
- Pin Spacing: 3.5 mm / 0.138 inch
- Width: 7 mm / 0.276 inch
- Height: 31 mm / 1.22 inch
- Depth: 11.4 mm / 0.449 inch
- Contact Material: Electrolytic copper (E) Cu
- Contact Plating: tin-plated
- Flammability Class per UL94: V0
- Material Group: I
- Insulation Material: Polyphthalamide (PPA GF)
- Weight: 0.9 g
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4050821327585
- Customs Tariff Number: 85366990990
Buy the 2091-1102/000-1000 WAGO 2-pole Female Connector | myMectronic
Purchase the WAGO 2091-1102/000-1000 connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 209111020001000?
You can click on the BUY or RFQ button to purchase 209111020001000 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 209111020001000?
You can download the 209111020001000 datasheet or visit the WAGO website for support.
Who is the manufacturer of 209111020001000?
WAGO
