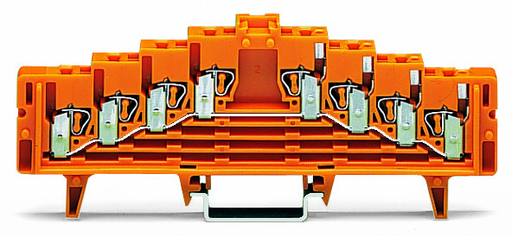

WAGO 727226 4-Level Terminal Block
The WAGO 727-226 is a versatile 4-level terminal block suitable for a wide range of industrial applications. Designed for mounting on 35x7.5mm DIN rails, it offers a compact and efficient solution for managing multiple connections. The innovative CAGE CLAMP connection technology ensures reliable and tool-friendly termination of conductors. With a rated voltage of 250V and a rated current of 18A, this terminal block provides robust performance in diverse electrical systems. Its orange polyamide 66 (PA 66) construction ensures durability and resistance to environmental factors, making it a dependable choice for demanding industrial environments.
WAGO 727226 4-Level Terminal Block Specifications:
- Rated Voltage: 250 V
- Rated Impulse Voltage: 4 kV
- Rated Current: 18 A
- Connection Technology: CAGE CLAMP®
- Solid Conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Fine-Stranded Conductor: 0.08 … 1.5 mm² / 28 … 16 AWG
- Strip Length: 8 … 10 mm / 0.31 … 0.39 inch
- Number of Levels: 4
- Width: 7.62 mm / 0.3 inch
- Height from Upper-Edge of DIN Rail: 44.5 mm / 1.752 inch
- Depth: 126 mm / 4.961 inch
- Material: Polyamide 66 (PA 66)
- Fire Load: 0.55 MJ
- Weight: 29.6 g
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4045454189051
- Customs Tariff No.: 85369010000
Buy the 727-226 WAGO 4-Level Terminal Block | myMectronic
Purchase the WAGO 727-226 terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 727226?
You can click on the BUY or RFQ button to purchase 727226 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 727226?
You can download the 727226 datasheet or visit the WAGO website for support.
Who is the manufacturer of 727226?
WAGO
