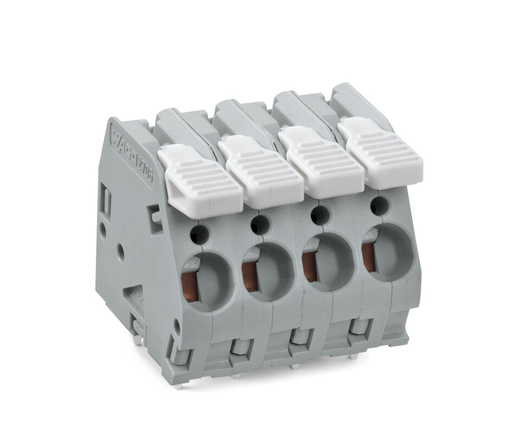

WAGO 2706104 4-pole Lever Terminal Block
The WAGO 2706-104 is a high-current PCB terminal block designed for reliable connections in industrial applications. Its lever-actuated CAGE CLAMP connection allows for tool-free termination, simplifying the installation process. The block supports a wide range of conductor sizes and offers excellent electrical and mechanical stability. It is ideal for applications requiring robust and secure connections in power distribution, automation, and control systems.
Authorized Distributors
Source:Master Electronics
Part No:2706-104
Stock:170
Inv Date:06-04-2026
Price: Unit price: $7.7
Buy/RFQ:
Source:Onlinecomponents.com
Part No:2706-104
Stock:170
Inv Date:06-04-2026
Price: Unit price: $7.7
Buy/RFQ:
Source:Future Electronics Corporate
Part No:2706-104
Stock:0
Inv Date:06-04-2026
Price: Unit price: $6.3
Buy/RFQ:
WAGO 2706104 4-pole Lever Terminal Block Specifications:
- Rated Voltage (III/3): 500 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Voltage (III/2): 630 V
- Rated Surge Voltage (III/2): 6 kV
- Rated Voltage (II/2): 1000 V
- Rated Surge Voltage (II/2): 6 kV
- Rated Current: 41 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 30 A
- Rated Voltage UL (Use Group C): 150 V
- Rated Current UL (Use Group C): 30 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 30 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Lever
- Solid Conductor Size: 0.5 … 6 mm² / 20 … 10 AWG
- Fine-Stranded Conductor Size: 0.5 … 6 mm² / 20 … 10 AWG
- Fine-Stranded Conductor with Insulated Ferrule Size: 0.5 … 6 mm²
- Fine-Stranded Conductor with Uninsulated Ferrule Size: 0.5 … 6 mm²
- Strip Length: 11 … 12 mm / 0.43 … 0.47 inch
- Conductor Connection Direction to PCB: 30 °
- Pole No.: 4
- Total Number of Connection Points: 4
- Total Number of Potentials: 4
- Number of Connection Types: 1
- Number of Levels: 1
- Pin Spacing: 7.5 mm / 0.295 inch
- Width: 30 mm / 1.181 inch
- Height: 30 mm / 1.181 inch
- Height from Surface: 25.5 mm / 1.004 inch
- Depth: 26 mm / 1.024 inch
- Solder Pin Length: 4.5 mm
- Solder Pin Dimensions: 1 x 1.4 mm
- Drilled Hole Diameter (Tolerance): 1.8 mm (+0.1)
- Material Group: I
- Insulation Material: Polyamide (PA66)
- Flammability Class per UL94: V0
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Electrolytic copper (E) Cu
- Contact Plating: tin-plated
- Fire Load: 0.412 MJ
- Weight: 20.8 g
- Limit Temperature Range: -60 … +105 °C
Buy the 2706-104 WAGO 4-pole Lever Terminal Block | myMectronic
Purchase the WAGO 2706-104 PCB terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 2706104?
You can click on the BUY or RFQ button to purchase 2706104 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 2706104?
You can download the 2706104 datasheet or visit the WAGO website for support.
Who is the manufacturer of 2706104?
WAGO
