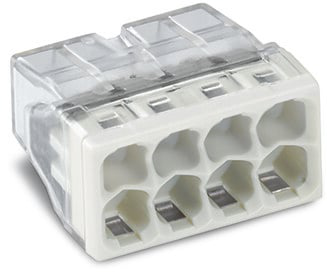

WAGO 2273208 8-conductor Splicing Connector
The WAGO 2273-208 compact splicing connector offers a convenient and efficient solution for connecting solid conductors. Its compact design minimizes space requirements, while the push-in termination simplifies wiring. The transparent housing allows for visual confirmation of conductor insertion, ensuring proper connections. Suitable for a wide range of industrial applications, this connector provides reliable performance and ease of use. For aluminum conductors, use of WAGO “Alu-Plus” Contact Paste is recommended to prevent corrosion and maintain conductivity.
WAGO 2273208 8-conductor Splicing Connector Specifications:
- conductor_material: Copper, Aluminum (with Alu-Plus)
- conductor_size: 0.5 - 2.5 mm² / 20 - 16 AWG
- strip_length: 11 mm / 0.43 inch
- number_of_connections: 8
- number_of_potentials: 1
- nominal_voltage: 450 V
- rated_surge_voltage: 4 kV
- rated_current: 24 A
- operating_temperature_range: 60 - 105 °C
- flammability_class: V2
- weight: 2.2 g
- width: 18 mm / 0.709 inch
- height: 10.4 mm / 0.409 inch
- depth: 16.7 mm / 0.657 inch
- connection_technology: PUSH WIRE®
- actuation_type: Push-in
- wiring_type: Side-entry wiring
- aluminum_conductor_current_rating: {'2.5 mm²': '16 A', '4 mm²': '22 A'}
Buy the 2273-208 WAGO 8-conductor Splicing Connector | myMectronic
Purchase the WAGO 2273-208 splicing connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 2273208?
You can click on the BUY or RFQ button to purchase 2273208 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 2273208?
You can download the 2273208 datasheet or visit the WAGO website for support.
Who is the manufacturer of 2273208?
WAGO
