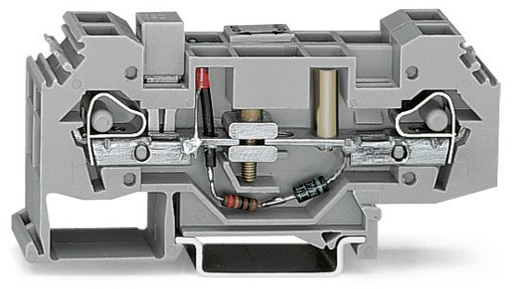

WAGO 282138 Disconnect Terminal Block
The WAGO 282-138 disconnect terminal block provides a secure and easily accessible connection point for electrical circuits. Utilizing WAGO’s innovative CAGE CLAMP® connection technology, it ensures reliable conductor clamping without the need for special tools. Designed for horizontal mounting on DIN-35 rails, this terminal block is ideal for applications requiring frequent disconnection and reconnection, such as maintenance or troubleshooting. Its robust construction and clear labeling options contribute to efficient and safe electrical installations in industrial environments.
WAGO 282138 Disconnect Terminal Block Specifications:
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Strip length: 12 … 13 mm / 0.47 … 0.51 inch
- Total number of connection points: 4
- Total number of potentials: 2
- Number of levels: 1
- Wiring type: Side-entry wiring
- Width: 16 mm / 0.63 inch
- Height: 87.5 mm / 3.445 inch
- Depth from upper edge of DIN-rail: 38.5 mm / 1.516 inch
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Side marking
- Color: gray
- Fire load: 0.652 MJ
- Weight: 44.6 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454448493
- Customs tariff number: 85365080900
- Operation status indicator: 120 V
Buy the 282-138 WAGO Disconnect Terminal Block | myMectronic
Purchase the WAGO 282-138 disconnect terminal block securely and efficiently online.
