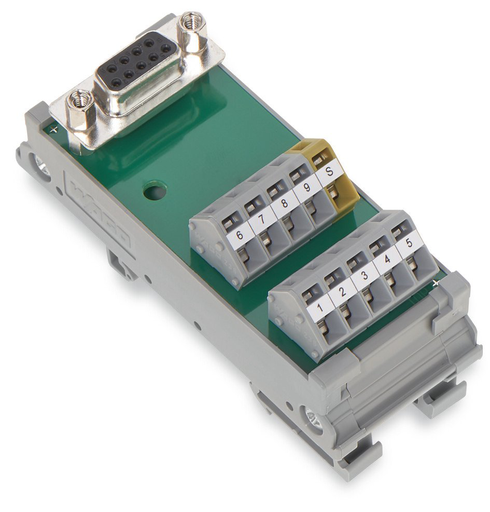

WAGO 289575 9-pole Interface Module
The WAGO 289-575 interface module provides a reliable and efficient connection solution for PCB terminal blocks in various industrial applications. This 9-pole module features a solder connection for secure attachment and is designed for vertical mounting on double-row PCB terminal blocks. It supports a wide range of conductor sizes and offers a robust design for demanding environments. The module's compact size and ease of integration make it ideal for automation, control systems, and power distribution applications. With a rated voltage of 100V and a nominal current of 2A, it provides a safe and dependable connection for various electrical circuits.
WAGO 289575 9-pole Interface Module Specifications:
- Operating voltage: ≤ AC 100 V; ≤ DC 125 V
- Nominal current: 2 A
- Contact resistance (max.): 30 mΩ
- Specialty functions: With shield connection
- Rated voltage: 100 V
- Rated impulse voltage: 0.8 kV
- Pollution degree: 2
- Protection class: IP20
- Connection type (1): System
- No. of poles: 9
- Pluggable connector: D-subminiature; female connector
- For mating connectors: With solder connection
- Mating direction: Vertical
- Pull relief: Stud bolts UNC 4-40
- Connection type (2): Field
- No. of poles 2: 10
- Design 2: PCB terminal blocks, 2-row
- Connection technology 2: CAGE CLAMP®
- WAGO terminal 2: WAGO 236 Series
- Solid conductor (2): 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor (2): 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip length (2): 5 … 6 mm / 0.2 … 0.24 inch
- Note (conductor cross-section): 12 AWG: THHN, THWN
- Performance level: 2 / 200 mating cycles
- Strain relief: Gewindebolzen UNC 4-40
- Width: 33 mm / 1.299 inch
- Height from upper-edge of DIN-35 rail: 34 mm / 1.339 inch
- Depth: 85 mm / 3.346 inch
- Type of mounting: DIN-35 rail
- Housing design: Mounting carrier
- Contact material (pluggable connector): Au over Ni
- Fire load: 0.586 MJ
- Weight: 47 g
- Surrounding air (operating) temperature: -20 … 50 °C
- Surrounding air (storage) temperature: -40 … 70 °C
- Relative humidity: ≤ 85% (non condensing)
- Standards and specifications: UL 840
- Product Group: 6 (Interface Electronics)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454371210
- Customs Tariff No.: 85369010000
