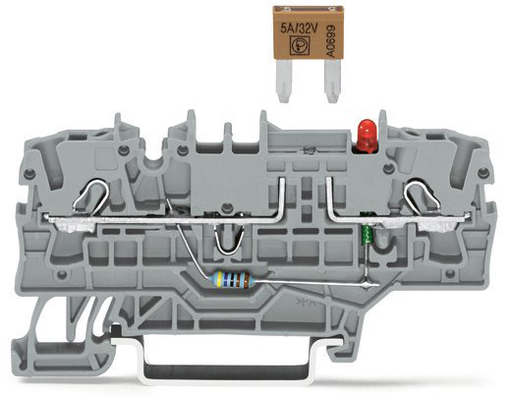

WAGO 200219811000434 2-Conductor Fuse Terminal Block
The WAGO 2002-1981/1000-434 is a 2-conductor fuse terminal block ideal for applications requiring fuse protection and visual indication of blown fuses. Designed for mini-automotive blade-style fuses, this terminal block is mounted on DIN rails (35x15 and 35x7.5) and utilizes the reliable Push-in CAGE CLAMP® connection technology. It provides a safe and efficient solution for electrical distribution and protection in industrial control panels and machinery. The LED blown fuse indication simplifies troubleshooting and maintenance.
WAGO 200219811000434 2-Conductor Fuse Terminal Block Specifications:
- Rated voltage (III / 3): 400 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 10 A
- Operation status indicator: 24 V
- Connection technology: Push-in CAGE CLAMP®
- Nominal cross section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor, push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 1 … 2.5 mm² / 18 … 12 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 1 … 2.5 mm² / 18 … 12 AWG
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Total number of connection points: 2
- Total number of potentials: 2
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 5.2 mm / 0.205 inch
- Height from upper-edge of DIN-35 rail: 32.9 mm / 1.295 inch
- Depth: 72.9 mm / 2.87 inch
- Insulating material: Polyamide 66 (PA 66)
- Weight: 8.2 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4050821127055
- Customs Tariff No.: 85369095990
Buy the 2002-1981/1000-434 WAGO 2-Conductor Fuse Terminal Block | myMectronic
Purchase the WAGO 2002-1981/1000-434 fuse terminal block securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 200219811000434?
You can click on the BUY or RFQ button to purchase 200219811000434 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 200219811000434?
You can download the 200219811000434 datasheet or visit the WAGO website for support.
Who is the manufacturer of 200219811000434?
WAGO
