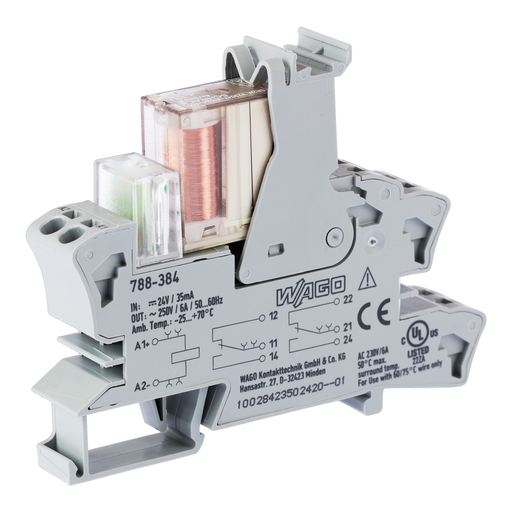

WAGO 788384 Relay Module with Contacts
The WAGO 788-384 relay module is a versatile component for industrial control systems. It operates on a 24VDC nominal input voltage and provides two changeover contacts for flexible circuit configurations. With a limiting continuous current of 6A, it's suitable for various applications. The integrated red status indicator provides visual feedback on the relay's operational state. Designed for DIN-35 rail mounting, this module offers a compact and space-saving solution. Reinforced insulation between the coil and contacts enhances safety and reliability in critical applications. Proper damping of inductive loads is recommended to protect the relay coils and contacts, and a separator plate may be required for voltages exceeding 250V to ensure reinforced insulation compliance.
WAGO 788384 Relay Module with Contacts Specifications:
- Nominal input voltage: 24 VDC
- Input voltage range: -15 … +10 %
- Nominal input current at UN: 31 mA
- Number of changeover contacts: 2
- Contact material (relay): AgNi
- Limiting continuous current: 6 A
- Max. make current (resistive): (AC) 14 A / 4 s
- Max. switching voltage: AC 250 V
- Max. switching power (resistive): AC 1500 VA
- Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 3 A / DC 24 V
- Recommended minimum load: 5 V / 10 mA
- Pull-in time (typ.): 10 ms
- Drop-out time (typ.): 4 ms
- Electrical life (N.O.; resistive load; 23 °C): 100 x 10 switching operations
- Mechanical life: 10 x 10 switching operations
- Max. switching load with load/without load: 6 min / -1 / 300 min -1
- Forced operation: Type A
- Status indication: LED red
- Rated voltage: 250 V
- Rated impulse voltage: 4 kV
- Pollution degree: 3
- Dielectric strength, control/load circuit (AC, 1 min): 4 kVrms
- Dielectric strength open contact (AC, 1 min): 1.5 kVrms
- Dielectric strength, load/load circuit (AC, 1 min): 3 kVrms
- Protection class: IP20
- Connection technology: Push-in CAGE CLAMP®
- Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip length: 9 … 10 mm
- Width: 15 mm
- Height from upper-edge of DIN-35 rail: 64 mm
- Depth: 86 mm
- Color: gray
- Fire load: 0.943 MJ
- Weight: 50.3 g
- Standards and specifications: EN 61010-2-201; EN 61810-1; EN 61373; UL 508
