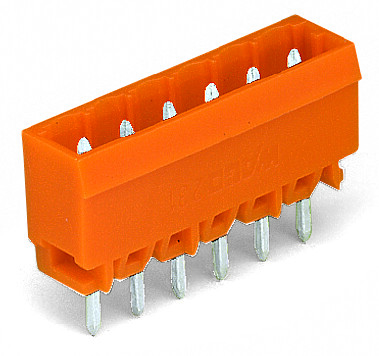

WAGO 231366001000 Straight Solder Pin Connector
The WAGO 231-366/001-000 is a robust, straight solder pin connector ideal for connecting to PCBs. With a 5.08mm pin spacing and a closed end, this connector provides a secure and reliable connection. It is designed for applications requiring perpendicular PCB mounting and is suitable for use in a variety of industrial environments. The connector's orange color and compact dimensions (12mm height, 33.68mm width, 8.4mm depth) make it a versatile choice for diverse electronic projects.
WAGO 231366001000 Straight Solder Pin Connector Specifications:
- product_description: STRAIGHT SOLDER PIN, 1.2 X 1.2 MM /0.047 X 0.047 IN; 6 POLE; PIN SPACING 5.08 MM / 0.2 IN; MATING DIRECTION PERPENDICULAR TO PCB; WITH CLOSED END
- packing_unit: 100 pieces
- product_group: 3 (Multi Conn. System)
- pin_spacing_mm: 5.08
- pin_spacing_in: 0.2
- pole_count: 6
- measured_voltage_en: 250 V
- measured_shock_voltage: 4 kV
- pollution_degree: 3
- current_intensity_en: 16 A
- weight_g: 2.458
- color: orange
- height_mm: 12
- height_in: 0.472
- width_mm: 33.68
- width_in: 1.326
- depth_mm: 8.4
- depth_in: 0.331
- bv_approval_no: 11915/A0
- cca_approval_no: 5764
- csa_approval_no: 154112-1466354
- demko_approval_no: 88126
- kema_approval_no: 2083746.02
- kr_approval_no: HMB05880-EL003
- nemko_approval_no: P94101840
- ul_approval_no_1: E45171
- ul_voltage_1: 600
- ul_current_1: 15
- ul_approval_no_2: E45172
- ul_voltage_2: 300
- ul_current_2: 15
- ur_approval_no_1: E45171
- ur_voltage_1: 600
- ur_current_1: 15
- ur_approval_no_2: E45172
- ur_voltage_2: 300
- ur_current_2: 15
- vde_approval_no: 5675ÜGBl.2
- vde_voltage: 250
- vde_current: 12
