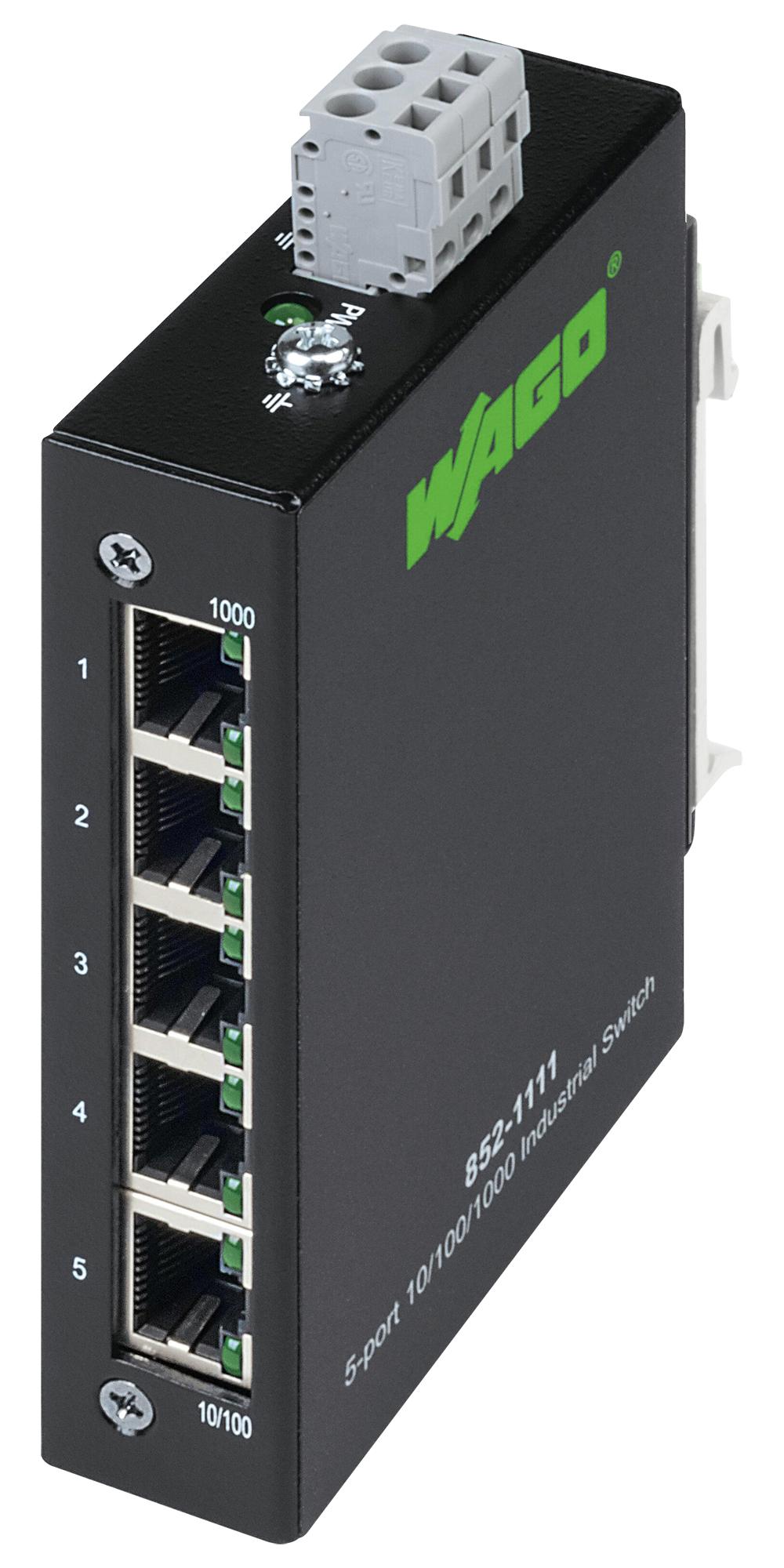

WAGO 8521111 Industrial Ethernet Switch
The 852-1111 is a 5-port industrial Ethernet switch supporting 10/100/1000 Mbps auto-negotiation, full/half-duplex modes, and plug-and-play installation. Ideal for small to medium-sized networks, it features diagnostic LEDs, overvoltage protection, IEEE 802.3x flow control, and prioritization for Profinet Ethernet frames. Its rugged design includes a DIN-35 rail mount, IP30 protection, operating temperature of -40°C to +70°C, and a lightweight sheet steel housing. The switch enables efficient network segmentation, reduces network load, and supports up to 8000 MAC addresses, making it versatile for industrial automation environments.
WAGO 8521111 Industrial Ethernet Switch Specifications:
- Number of ports: 5 Ethernet Ports, 10/100/1000 Mbps auto-negotiation
- Communication standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
- MAC address table: Up to 8000 entries
- Jumbo frame size: 9000 Byte
- Supply voltage: DC 9...48V
- Energy consumption: Max. 3W
- Transmission medium: Copper cable, Cat. 5 or higher, max. length 100 m
- Connections: 5 x RJ-45 ports, Shielded, IP30 housing
- Dimensions: Width 23.4 mm, Height 81 mm, Depth 109.2 mm
- Housing material: Sheet steel, Black color
- Operating temperature: -40°C to +70°C
- Storage temperature: -40°C to +80°C
- Protection class: IP30
- Mounting type: DIN-35 rail
- Vibration resistance: IEC 60068-2-6
- Shock resistance: IEC 60068-2-27
- Conformity: CE
Buy the WAGO Series Industrial Ethernet Switch: 852-1111
Enhance your industrial network with the WAGO Industrial Ethernet Switch. Featuring five Gigabit ports, rugged design, DIN rail mounting, and IP30 protection, it ensures seamless network segmentation and reliable communication in challenging environments. with support for auto-negotiation, IEEE 802.3x flow control, and prioritization for Profinet frames, this switch is ideal for small to medium-sized automation setups. Easy to install, energy-efficient, and capable of handling up to 8000 MAC addresses, it’s a cost-effective solution for industrial applications.
Get WAGO 852-1111 today—built for industrial network reliability and durable performance.
Frequently Asked Questions
Where can I buy WAGO 8521111?
You can click on the BUY or RFQ button to purchase 8521111 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 8521111?
You can download the 8521111 datasheet or visit the WAGO website for support.
Who is the manufacturer of 8521111?
WAGO
