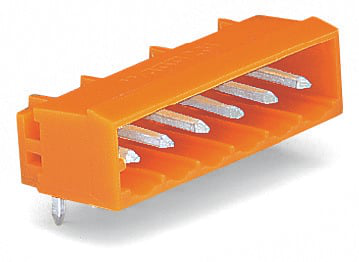

WAGO 231538001000 8-pole THT Header
The WAGO 231-538/001-000 is a robust 8-pole THT male header suitable for a variety of industrial applications requiring secure PCB connections. It utilizes angled solder pins for easy integration and offers a pin spacing of 5.08mm. The header is designed for both horizontal and vertical PCB mounting and is rated for a voltage of 320V and a current of 12A. It is RoHS compliant and features coding fingers for enhanced identification and organization. Compatible accessories include coding keys and marking strips for streamlined integration and labeling.
WAGO 231538001000 8-pole THT Header Specifications:
- Rated voltage (III / 3): 320 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 12 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 10 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage per UL 1977 (factory wiring only): 600 V
- Rated current per UL 1977 (factory wiring only): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 10 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- No. of poles: 8
- Total number of potentials: 8
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 5.08 mm / 0.2 inch
- Width: 43.76 mm / 1.723 inch
- Height: 12.2 mm / 0.48 inch
- Height from the surface: 8.4 mm / 0.331 inch
- Depth: 12 mm / 0.472 inch
- Solder pin length: 3.8 mm
- Solder pin dimensions: 1 x 1 mm
- Drilled hole diameter (tolerance): 1.4 mm
- Contact type (pluggable connector): Male connector/plug
- Connector connection type: for PCBs
- Mismating protection: No
- Mating direction to the PCB: 0 °
- Color: orange
- Material group: I
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.047 MJ
- Weight: 2.7 g
- Limit temperature range: -60 … +100 °C
- Product Group: 3 (Multi Conn. System)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918867078
- Customs Tariff No.: 85366990990
