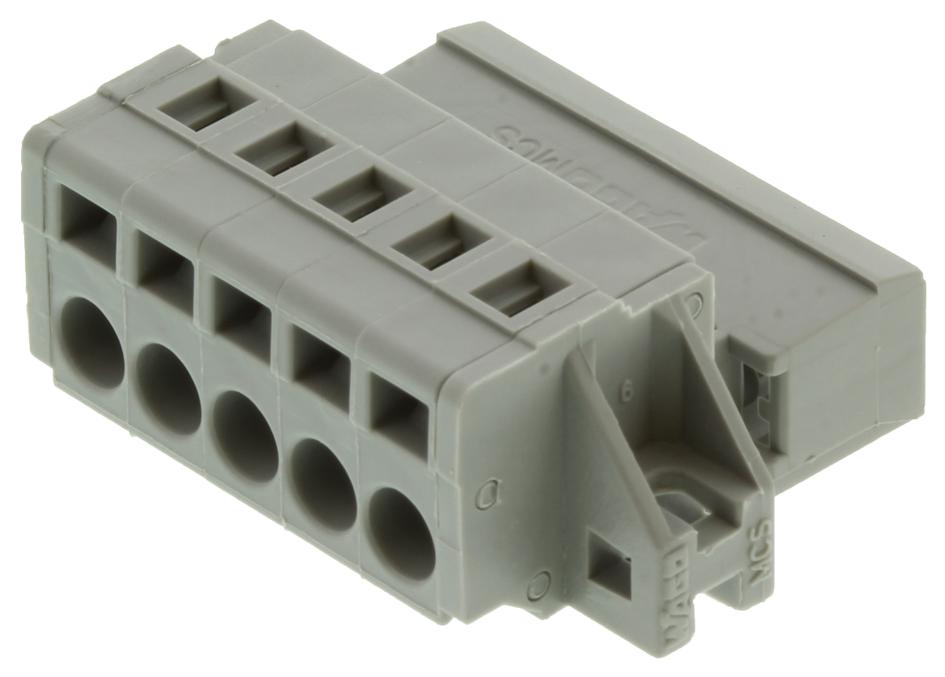

WAGO 231605019000 5 Pole Connector
The WAGO 231-605/019-000 is a robust 5-pole male connector with a fixing flange, designed for secure mounting in diverse industrial settings. Its 5mm pin spacing accommodates various wiring configurations, and it supports both parallel and perpendicular mounting orientations. Constructed with high-quality materials like PA 6.6 insulating material and nickel-chromium spring steel, this connector ensures reliable performance and durability. It is RoHS compliant and suitable for applications requiring adherence to stringent safety standards. The connector's versatility is further enhanced by its compatibility with a wide range of approvals, including ABS, BV, CSA, and UR, making it a dependable choice for demanding environments.
WAGO 231605019000 5 Pole Connector Specifications:
- Product Description: Male connector with fixing flange
- Pole Count: 5
- Number of Potentials: 5
- Pin Spacing: 5 mm / 0.197 in
- Height: 14.3 mm / 0.563 in
- Width: 39.8 mm / 1.567 in
- Depth: 27.5 mm / 1.083 in
- Measured Voltage EN: 320 V / 630 V
- Measured Shock Voltage: 4 kV
- Current Intensity EN: 12 A / 16 A
- Overvoltage Category EN: I III / II III
- Pollution Degree: 2 / 3
- Connection Method: CAGE CLAMP®CONNECTION
- Cross Section [mm²]: 0.08 - 2.5 mm²
- Wiring Method (solid): 0.08 - 2.5 mm²
- Wiring Method (fine-stranded): 0.25 - 1.5 mm²
- Wiring Method (fine-stranded with ferrule): 0.25 - 2.5 mm²
- Wiring Method (fine-stranded with ferrule and plastic collar): 0.25 - 2.5 mm²
- AWG: 28 - 12 AWG
- Strip Length: 8 - 9 mm / 0.31 - 0.35 in
- Insulating Material: PA 6.6
- Temperature Stability: -60 °C to +100 °C
- Flammability: V0
- Clamping Spring Material: CrNi
- Contact Material: Ecu (Electrolytic copper)
- Contact Plating: Tin-plated
- Strain Relief Plate: 20 mm
- Approval ABS: 04-HG469925/1-PDA
- Approval BV: 11915/A0
- Approval CCA: 5764
- Approval CSA: 154112-1466354
- Approval GL: 17296-00HH
- Approval KEMA: 2083746.02
- Approval KR: HMB05880-EL003
- Approval LR: 96/20035
- Approval RMR: 11130002
- Approval UR: E45171/E45172
