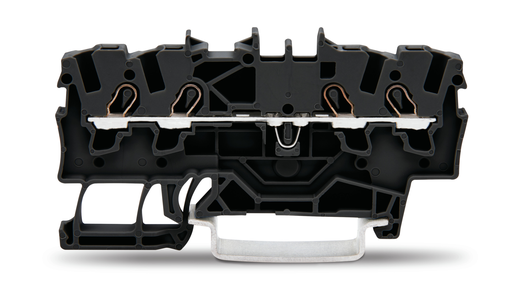

WAGO 20011405 4-conductor Terminal Block
The WAGO 2001-1405 is a robust and reliable 4-conductor through terminal block, ideal for industrial applications requiring safety and efficiency. Its Pushin CAGE CLAMP® connection simplifies wiring, while its suitability for Ex e II environments ensures safe operation in potentially explosive atmospheres. The terminal block is designed for DIN-rail mounting, offering flexibility in installation. It supports a wide range of conductor sizes and materials, making it versatile for various applications. With ratings up to 800V and 18A, it provides ample capacity for demanding electrical circuits.
WAGO 20011405 4-conductor Terminal Block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 18 A
- Rated current (2): 24 A
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 15 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 15 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 17 A
- Rated current (Ex e II) with jumper: 16 A
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross section: 1.5 mm²
- Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
- Solid conductor, push-in termination: 0.75 … 2.5 mm² / 18 … 14 AWG
- Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.75 … 1.5 mm² / 18 … 16 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 0.75 … 1.5 mm² / 18 … 16 AWG
- Strip length: 9 … 11 mm / 0.35 … 0.43 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 4.2 mm / 0.165 inch
- Height from upper-edge of DIN-35 rail: 32.9 mm / 1.295 inch
- Depth: 69.9 mm / 2.752 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
- Color: black
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.104 MJ
- Weight: 5.2 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454537425
- Customs Tariff No.: 85369010000
