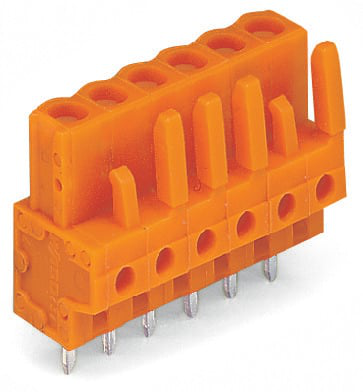

WAGO 232163 THT Female Header
The WAGO 232-163 THT female header is a versatile component for connecting PCBs and wires. Its angled design and 5.08mm pin spacing facilitate easy integration into various applications. The header's touch-proof outputs enhance safety, while coding fingers simplify identification. Constructed from polyamide 66 with tin-plated copper alloy contacts, it offers reliable performance and is suitable for a wide range of industrial applications, including power distribution and control systems. It is rated for voltages up to 320V and currents up to 12A, and holds various certifications including UL, CSA, and KEMA.
WAGO 232163 THT Female Header Specifications:
- Pin spacing: 5.08 mm
- Number of poles: 3
- Solder pin length: 5 mm
- Solder pin dimensions: 0.6 x 1 mm
- Rated voltage (III / 3): 320 V
- Rated impulse voltage (III / 3): 4 kV
- Rated voltage (III / 2): 320 V
- Rated impulse voltage (III / 2): 4 kV
- Rated voltage (II / 2): 630 V
- Rated impulse voltage (II / 2): 4 kV
- Rated current: 12 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage per UL 1977 (factory wiring only): 600 V
- Rated current per UL 1977 (factory wiring only): 15 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Total number of connection points: 3
- Total number of potentials: 3
- Number of connection types: 1
- Number of levels: 1
- Width: 16.74 mm
- Height: 16.6 mm
- Height from the surface: 11.6 mm
- Depth: 18.25 mm
- Drilled hole diameter (tolerance): 1.3 mm
- Contact type (pluggable connector): Female connector/socket
- Connector connection type: for PCBs
- Mismating protection: No
- Mating direction to the PCB: 0 °
- Color: orange
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Contact material: Copper alloy
- Contact plating: tin-plated
- Fire load: 0.047 MJ
- Weight: 2.7 g
- Limit temperature range: -60 … +85 °C
- GTIN: 4044918579445
- Customs Tariff No.: 85366990990
