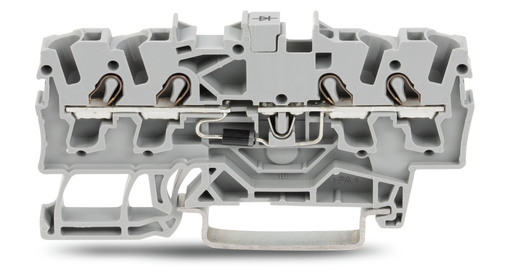

WAGO 200214111000410 4-conductor Terminal Block
The WAGO 2002-1411/1000-410 is a 4-conductor terminal block designed for reliable electrical connections in industrial environments. It incorporates a diode 1N4007 and is suitable for mounting on DIN-rails 35 x 15 and 35 x 7.5. The Push-in CAGE CLAMP® connection technology ensures secure and efficient termination of conductors, while the robust polyamide 66 (PA 66) construction provides durability and insulation. This terminal block is ideal for applications requiring compact and reliable power distribution.
WAGO 200214111000410 4-conductor Terminal Block Specifications:
- Nominal Voltage: 250 V
- Reverse Voltage: 1,000 V
- Rated Current: 0.5 A
- Connection Technology: Push-in CAGE CLAMP®
- Connectable Conductor Materials: Copper
- Nominal Cross Section: 2.5 mm²
- Solid Conductor Range: 0.25 … 4 mm² / 22 … 12 AWG
- Solid Conductor Push-in Termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-Stranded Conductor Range: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-Stranded Conductor with Ferrule: 1 … 2.5 mm² / 18 … 12 AWG
- Strip Length: 10 … 12 mm / 0.39 … 0.47 inch
- Total Connection Points: 4
- Total Potentials: 1
- Number of Levels: 1
- Wiring Type: Front-entry wiring
- Width: 5.2 mm / 0.205 inch
- Height from Upper-Edge of DIN Rail: 32.9 mm / 1.295 inch
- Depth: 69.9 mm / 2.752 inch
- Design: horizontal
- Mounting Type: DIN-35 rail
- Marking Level: Center/side marking
- Insulating Material: Polyamide 66 (PA 66)
- Fire Load: 0.173 MJ
- Weight: 7.7 g
- Product Group: 22 (TOPJOB S)
- Packaging Type: BOX
- Country of Origin: CN
- GTIN: 4045454536329
- Customs Tariff No.: 85369010000
