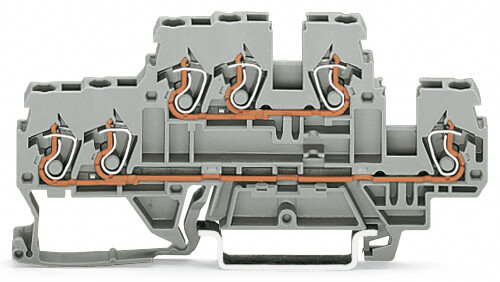

WAGO 870532 3-conductor Terminal Block
The WAGO 870-532 is a robust and reliable 3-conductor, double-deck terminal block ideal for use in industrial control and automation systems. Its double-deck design allows for efficient space utilization on DIN rails. The CAGE CLAMP® connection technology ensures secure and vibration-resistant connections, minimizing the risk of loose connections and downtime. Suitable for a broad range of applications including power distribution, lighting control, and motor control circuits.
WAGO 870532 3-conductor Terminal Block Specifications:
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 24 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
- Strip length: 6 … 7 mm / 0.24 … 0.28 inch
- Total number of connection points: 6
- Total number of potentials: 2
- Number of levels: 2
- Type of wiring: Front-entry wiring
- Width: 5 mm / 0.197 inch
- Height from upper-edge of DIN-35 rail: 40 mm / 1.575 inch
- Depth: 91 mm / 3.583 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Potential marking: L/L
- Marking level: Side marking
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.199 MJ
- Weight: 13.2 g
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454094461
- Customs Tariff No.: 85369010000
