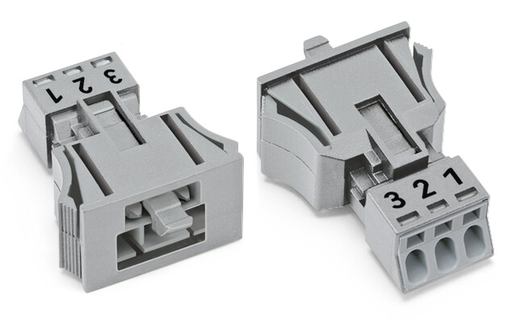

WAGO 890753 3-Pole Snap-in Plug
The WAGO 890-753 snap-in plug provides a reliable and efficient connection solution for a wide range of applications, particularly in lighting fixtures and devices. Its push-in CAGE CLAMP® spring pressure connection technology simplifies installation, allowing solid conductors to be easily inserted. The plug's design incorporates features like mismating protection and color-coding capabilities, ensuring secure and organized connections. It is suitable for use in easily accessible areas and complies with IP40 standards when mated. The WAGO 890-753 is a robust and versatile component for industrial electrical systems.
WAGO 890753 3-Pole Snap-in Plug Specifications:
- Color: gray
- Pole No.: 3
- Nominal Voltage (III/3): 250 V
- Rated Surge Voltage (III/3): 4 kV
- Rated Current: 16 A
- Note on Rated Current: 13 A for 3-pole load
- Rated Voltage UL: 600 V
- Rated Current UL: 14 A
- Connection Technology: Push-in CAGE CLAMP®
- Solid Conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
- Solid Conductor; Push-in Termination: 0.75 … 1.5 mm² / 20 … 16 AWG
- Stranded Conductor: 0.25 … 1 mm² / 22 … 18 AWG
- Fine-Stranded Conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
- Fine-Stranded Conductor; with Insulated Ferrule: 0.25 … 0.75 mm² / 22 … 20 AWG
- Fine-Stranded Conductor; with Uninsulated Ferrule: 0.25 … 0.75 mm² / 22 … 20 AWG
- Fine-Stranded Conductor; with Ferrule; Push-in Termination: 0.75 mm² / 20 AWG
- Strip Length: 9 mm / 0.35 inch
- Pin Spacing: 4.4 mm / 0.173 inch
- Width: 24.2 mm / 0.953 inch
- Height: 16 mm / 0.63 inch
- Depth: 39.85 mm / 1.569 inch
- Coding: B
- Mating Force: approx. 20 … 70 N
- Retention Force: > 80 N
- Unmating Force: approx. 20 … 70 N
- Housing Sheet Thickness: 0.5 … 2 mm
- Mounting Type: Snap-in
- Protection Type: IP20
- Note on Protection Type: IP40 when mated
- Insulation Material: Polyamide 66 (PA66)
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Copper or copper alloy (surface-treated)
- Fire Load: 0.135 MJ
- Weight: 5.5 g
- Processing Temperature: -5 … +40 °C
- Continuous Operating Temperature: -35 … +85 °C
Buy the 890-753 WAGO 3-Pole Snap-in Plug | myMectronic
Purchase the WAGO 890-753 securely online and ensure reliable connections for your industrial applications.
Buy Now
