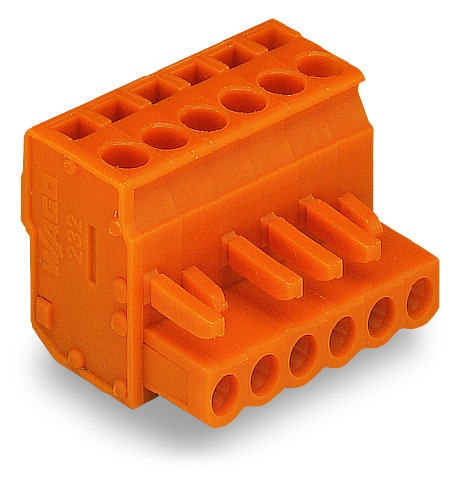

WAGO 232406026000 6-pole Angled Connector
The WAGO 232-406/026-000 angled female connector provides a reliable connection solution for various industrial applications. Its angled design facilitates convenient wiring, while the CAGE CLAMP® connection technology ensures secure and vibration-resistant terminations. The connector's codable design allows for easy identification and prevents mismating. It supports a broad range of conductor types and sizes, making it versatile for diverse projects. With its robust construction and UL approval, this connector is ideal for demanding environments.
WAGO 232406026000 6-pole Angled Connector Specifications:
- No. of Poles: 6
- Total number of connection points: 6
- Total number of potentials: 6
- Color: orange
- Overvoltage category EN: III
- Pollution degree: 2
- Rated voltage EN: 320 V
- Rated surge voltage: 4 kV
- Nominal current: 14 A
- Connection technology: CAGE CLAMP®
- Conductor type (solid): solid
- Cross section from (solid): 0.08 mm²
- Cross section up to (solid): 2.5 mm²
- Cross section from (fine-stranded): 0.08 mm²
- Cross section up to (fine-stranded): 2.5 mm²
- Cross section from (ferruled): 0.25 mm²
- Cross section up to (ferruled): 2.5 mm²
- Stripped length from: 8 mm
- Stripped length up to: 9 mm
- Material group: I
- Insulating material: Polyamide 6.6 (PA 6.6)
- Flammability rating per UL 94: V0
- Lower limit temperature: -60 C
- Upper temperature limit: 85 C
- Clamping spring material: Chrome-nickel spring steel (CrNi)
- Contact material: Copper alloy
- Contact plating: tin-plated
- Fire load: 0.187 MJ
- Weight: 11.37 g
- Width: 32.88 mm
- Height: 19.9 mm
- Length: 22.75 mm
- Pin spacing: 5.08 mm
