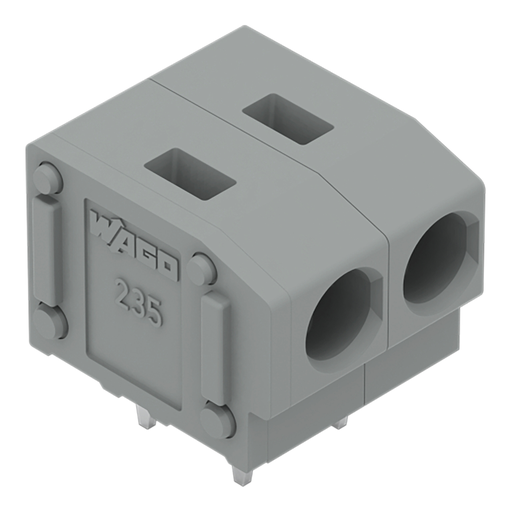

WAGO 235402 2-pole PCB Terminal Block
The WAGO 235-402 is a low-profile, modular PCB terminal strip designed for custom terminal strip assemblies. Utilizing the innovative PUSH WIRE connection, it simplifies conductor termination and ensures a reliable connection. The terminal block is rated for 24A and 250V, and features double solder pins for increased mechanical stability. It is suitable for a wide range of industrial applications requiring robust and efficient PCB connections.
Authorized Distributors
Source:Master Electronics
Part No:235-402
Stock:12
Inv Date:06-04-2026
Price: Unit price: $1.012
Buy/RFQ:
Source:Onlinecomponents.com
Part No:235-402
Stock:12
Inv Date:06-04-2026
Price: Unit price: $1.012
Buy/RFQ:
Source:Future Electronics Corporate
Part No:235-402
Stock:0
Inv Date:06-04-2026
Price: Unit price: $0.795
Buy/RFQ:
WAGO 235402 2-pole PCB Terminal Block Specifications:
- Nominal Voltage (III/3): 250 V
- Rated Surge Voltage (III/3): 4 kV
- Nominal Voltage (III/2): 320 V
- Rated Surge Voltage (III/2): 4 kV
- Nominal Voltage (II/2): 630 V
- Rated Surge Voltage (II/2): 4 kV
- Rated Current: 24 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 10 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 15 A
- Connection Technology: PUSH WIRE®
- Actuation Type: Operating tool
- Solid Conductor: 0.5 … 2.5 mm² / 20 … 14 AWG
- Fine-Stranded Conductor (Insulated Ferrule): 0.25 … 1.5 mm²
- Fine-Stranded Conductor (Uninsulated Ferrule): 0.25 … 1.5 mm²
- Strip Length: 9 … 10 mm / 0.35 … 0.39 inch
- Pin Spacing: 5/5.08 mm / 0.197/0.2 inch
- Width: 11.5 mm / 0.453 inch
- Height: 12.8 mm / 0.504 inch
- Height from Surface: 9.2 mm / 0.362 inch
- Depth: 12.5 mm / 0.492 inch
- Solder Pin Length: 3.6 mm
- Solder Pin Dimensions: 0.8 x 0.4 mm
- Drilled Hole Diameter: 1 mm (+0.1)
- Material Group: I
- Insulation Material: Polyamide 66 (PA 66)
- Flammability Class (UL94): V0
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Electrolytic copper (E Cu)
- Contact Plating: tin-plated
- Fire Load: 0.026 MJ
- Weight: 1.5 g
- Limit Temperature Range: -60 … +105 °C
- Packaging Type: BOX
- Country of Origin: CN
- GTIN: 4044918653923
- Customs Tariff Number: 85369010000
Buy the 235-402 WAGO 2-pole PCB Terminal Block | myMectronic
Purchase the WAGO 235-402 PCB terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 235402?
You can click on the BUY or RFQ button to purchase 235402 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 235402?
You can download the 235402 datasheet or visit the WAGO website for support.
Who is the manufacturer of 235402?
WAGO
