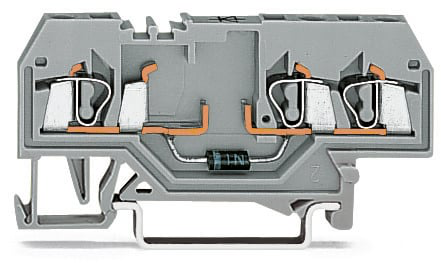

WAGO 280673281411 3-Conductor Terminal Block
The WAGO 280-673/281-411 is a 3-conductor terminal block designed for reliable connections in industrial applications. It incorporates a diode and utilizes WAGO’s innovative CAGE CLAMP® spring pressure connection technology, ensuring secure and consistent clamping force. The block is suitable for mounting on DIN rails (35 x 15 and 35 x 7.5) and accepts conductors up to 2.5 mm². For aluminum conductors, the use of WAGO’s “Alu-Plus” Contact Paste is recommended to prevent oxidation and ensure optimal performance. This terminal block is ideal for applications requiring robust and space-saving connection solutions.
WAGO 280673281411 3-Conductor Terminal Block Specifications:
- Nominal Voltage: 250 V
- Reverse Voltage: 1,000 V
- Rated Current: 0.5 A
- Connection Technology: CAGE CLAMP®
- Connectable Conductor Materials: Copper, Aluminum
- Solid Conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-Stranded Conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Total Number of Connection Points: 3
- Total Number of Potentials: 1
- Number of Levels: 1
- Width: 5 mm / 0.197 inch
- Height: 64 mm / 2.52 inch
- Depth from Upper Edge of DIN-Rail: 28 mm / 1.102 inch
- Design: horizontal type
- Mounting Type: DIN-35 rail
- Insulation Material: Polyamide (PA66)
- Flammability Class per UL94: V0
- Fire Load: 0.141 MJ
- Weight: 7.8 g
- Packaging Type: BOX
- Country of Origin: CN
- GTIN: 4050821275466
- Customs Tariff Number: 85369010000
