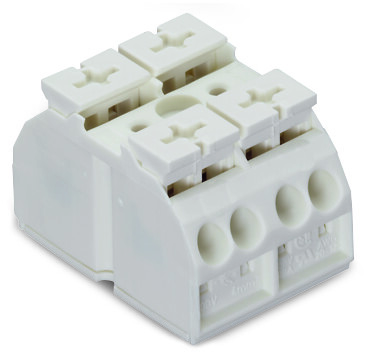

WAGO 862652 4-conductor terminal strip
The WAGO 862-652 is a robust 4-conductor chassis-mount terminal strip engineered for reliable electrical connections in industrial environments. This 2-pole strip, designed without a ground contact, accommodates 3mm screws and offers a secure mounting solution. Its push-in CAGE CLAMP® connection technology ensures easy and efficient wiring, while the polyamide (PA66) insulation material provides excellent durability and flame retardancy (V0 rating). Suitable for a wide range of applications, the 862-652 is a dependable choice for power distribution and signal transmission in machinery, control panels, and other industrial equipment. It supports various conductor materials and sizes, ensuring versatility in wiring configurations.
WAGO 862652 4-conductor terminal strip Specifications:
- Nominal Voltage (III/3): 500 V
- Rated Surge Voltage (III/3): 6 kV
- Rated Current: 32 A
- Connection Technology: Push-in CAGE CLAMP®
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Stranded Conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Fine-Stranded Conductor: 0.5 … 4 mm² / 20 … 12 AWG
- Pin Spacing: 12 mm / 0.472 inch
- Width: 24 mm / 0.945 inch
- Height from Surface: 22.3 mm / 0.878 inch
- Depth: 35 mm / 1.378 inch
- Mounting Type: Screw mounting
- Color: white
- Insulation Material: Polyamide (PA66)
- Flammability Class per UL94: V0
- Pole No.: 2
- Total Number of Connection Points: 8
- Total Number of Potentials: 2
- Wiring Type: Side-entry wiring
- Strip Length: 10 … 11 mm / 0.39 … 0.43 inch
Buy the 862-652 WAGO 4-conductor terminal strip | myMectronic
Purchase the WAGO 862-652 terminal strip securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 862652?
You can click on the BUY or RFQ button to purchase 862652 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 862652?
You can download the 862652 datasheet or visit the WAGO website for support.
Who is the manufacturer of 862652?
WAGO
