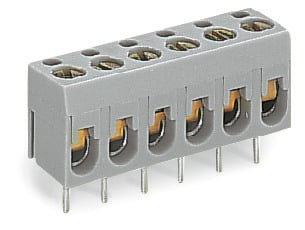

WAGO 237136 Modular Terminal Block
The WAGO 237-136 modular terminal block provides a robust and space-saving solution for connecting wires in industrial control and automation systems. Its modular design allows for flexible configuration and expansion. The screw clamp connection ensures a secure and reliable connection, while the wire protection feature safeguards against damage. With a pin spacing of 5mm and support for wire cross-sections ranging from 0.5mm² to 2.5mm², this terminal block is versatile for a wide range of applications. It is suitable for use in control cabinets, machinery, and other industrial environments where reliable power and signal transmission is essential.
WAGO 237136 Modular Terminal Block Specifications:
- Product Description: Modular terminal block with wire protection, 6 pole, pin spacing 5 mm / 0.197 in, screw clamp connection
- Pin Spacing: 5 mm / 0.197 in
- Pole Count: 6
- Cross Section (mm²): 0.5 - 2.5
- Cross Section (AWG): 20 - 14
- Connection Method: Screw Connection
- Measured Voltage (EN): 250 V
- Measured Shock Voltage: 2.5 kV
- Pollution Degree: 2
- Current Intensity (EN): 16 A
- Weight: 5.716 g
- Color: grey
- Wiring Type: Side-entry
- No. of Connection Points: 6
- No. of Potentials: 6
- Height: 11 mm / 0.433 in
- Width: 5 mm / 0.197 in
- Depth: 9 mm / 0.354 in
- Strip Length: 5 - 7 mm / 0.24 in
- CBcertificateINDIEN Approval No.: 98-02629
- CCA Approval No.: NL6290
- CSA Approval No.: 18677-6
- KEMA Approval No.: 110204.13
- RMR Approval No.: 11130002
- UR Approval No.: E45172
