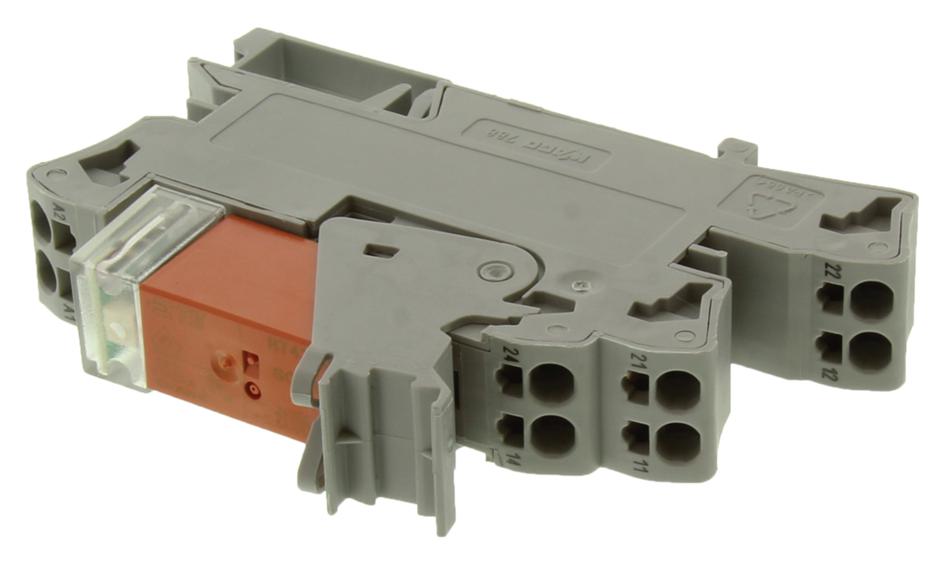

WAGO 788312 24VDC Relay Module
The WAGO 788-312 relay module is a versatile solution for industrial control and automation systems. Operating on a nominal input voltage of 24VDC, it offers two changeover contacts for flexible circuit configuration. With a limiting continuous current of 8A and a red status indicator, the module provides reliable performance and clear operational feedback. Designed for DIN-35 rail mounting, it integrates seamlessly into existing control panels. Reinforced insulation between the coil and contacts enhances safety and ensures compliance with industry standards. Effective protection circuits are required to dampen inductive loads, safeguarding the relay coils and contacts for extended operational life. This module is suitable for a wide range of applications, including machine control, building automation, and power distribution.
WAGO 788312 24VDC Relay Module Specifications:
- Nominal input voltage: 24 VDC
- Input voltage range: ±10 %
- Nominal input current at UN: 19 mA
- Number of changeover contacts: 2
- Contact material (relay): AgNi 90/10
- Limiting continuous current: 8 A
- Max. make current (resistive): (AC) 15 A / 4 s
- Max. switching voltage: AC 250 V
- Max. switching power (resistive): AC 2000 VA
- Switching capacity: AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V
- Recommended minimum load: 12 V / 10 mA
- Pull-in time (typ.): 8 ms
- Drop-out time (typ.): 13 ms
- Bounce time (typ.): 10 ms
- Electrical life (N.O.; resistive load; 23 °C): 10 x 10 switching operations
- Mechanical life: 30 x 10 switching operations
- Max. switching load with load/without load: 6 min / 1200 min
- Status indication: LED red
- Rated voltage: 250 V
- Rated impulse voltage: 4 kV
- Pollution degree: 3
- Dielectric strength, control/load circuit (AC, 1 min): 5 kVrms
- Dielectric strength open contact (AC, 1 min): 1 kVrms
- Dielectric strength, load/load circuit (AC, 1 min): 2.5 kVrms
- Protection class: IP20
- Connection technology: Push-in CAGE CLAMP®
- Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip length: 9 … 10 mm
- Width: 15 mm
- Height from upper-edge of DIN-35 rail: 54 mm
- Depth: 86 mm
- Color: gray
- Fire load: 1.349 MJ
- Weight: 45.5 g
- Surrounding air (operating) temperature: -40 … 70 °C
- Surrounding air (storage) temperature: -40 … 70 °C
- Standards and specifications: EN 61010-2-201; EN 61810-1; EN 61373; UL 508
