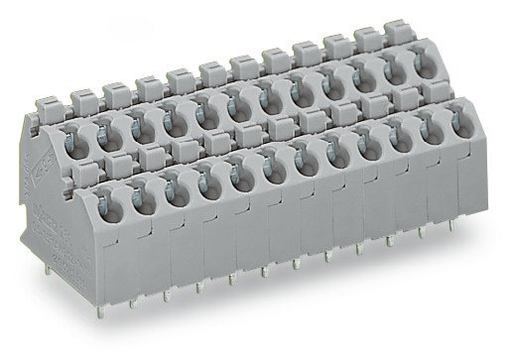

WAGO 250712 Double-deck PCB Terminal Block
The WAGO 250-712 double-deck PCB terminal block provides a compact and efficient solution for connecting wires to printed circuit boards. Its push-button design simplifies conductor termination and removal, accommodating both solid and stranded conductors. The 45° conductor entry angle optimizes space utilization in crowded PCB layouts. This terminal block is ideal for applications requiring reliable and easy-to-use connections in industrial control panels, automation systems, and power distribution networks. It is rated for 320V and 10A, ensuring safe and dependable performance.
WAGO 250712 Double-deck PCB Terminal Block Specifications:
- Nominal voltage (III/3): 320 V
- Rated surge voltage (III/3): 4 kV
- Rated voltage (III/2): 320 V
- Rated surge voltage (III/2): 4 kV
- Rated current: 10 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 10 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 10 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-button
- Solid conductor: 0.5 … 1.5 mm² / 20 … 16 AWG
- Fine-stranded conductor: 0.75 … 1.5 mm²
- Fine-stranded conductor with insulated ferrule: 0.5 … 1 mm²
- Fine-stranded conductor with uninsulated ferrule: 0.5 … 1 mm²
- Strip length: 9 … 10 mm / 0.35 … 0.39 inch
- Conductor connection direction to PCB: 45 °
- Pole No.: 24
- Total number of connection points: 24
- Total number of potentials: 24
- Number of connection types: 1
- Number of levels: 2
- Pin spacing: 5 mm / 0.197 inch
- Width: 61.2 mm / 2.409 inch
- Height: 24.9 mm / 0.98 inch
- Height from the surface: 20.9 mm / 0.823 inch
- Depth: 21.7 mm / 0.854 inch
- Solder pin length: 4 mm
- Solder pin dimensions: 0.5 x 0.75 mm
- Drilled hole diameter with tolerance: 1.2 mm (-0.1 … +0.1)
- PCB Contact: THT
- Solder pin arrangement: over the entire terminal strip (in-line)
- Number of solder pins per potential: 1
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.899 MJ
- Weight: 23 g
- Product Group: 4 (Printed Circuit)
- Packaging type: BOX
- Country of origin: CH
- GTIN: 4044918304559
- Customs tariff number: 85369010000
