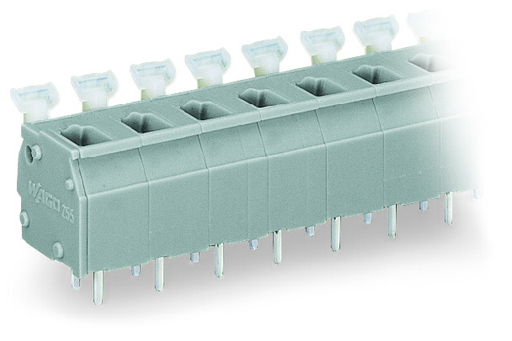

WAGO 255510 10 Pole PCB Terminal Block
The WAGO 255-510 is a versatile 10-pole PCB terminal block designed for reliable and efficient electrical connections. Its push-button actuation simplifies wiring, while the CAGE CLAMP® connection ensures secure and durable terminations. The block supports a broad range of conductor sizes, making it suitable for diverse industrial applications, including automation, power distribution, and control systems. Its compact design and easy-to-use features contribute to streamlined installation and maintenance processes.
WAGO 255510 10 Pole PCB Terminal Block Specifications:
- Rated voltage (III / 3): 500 V
- Rated impulse voltage (III / 3): 6 kV
- Rated voltage (III / 2): 630 V
- Rated impulse voltage (III / 2): 6 kV
- Rated voltage (II / 2): 1000 V
- Rated impulse voltage (II / 2): 6 kV
- Rated current: 24 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 15 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Actuation type: Push-button
- Solid conductor: 0.08 … 2.5 mm² / 25 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 1.5 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 1.5 mm²
- Strip length: 5 … 6 mm / 0.2 … 0.24 inch
- Conductor entry angle to the PCB: 90 °
- No. of poles: 10
- Total number of connection points: 10
- Total number of potentials: 10
- Number of connection types: 1
- Number of levels: 1
- Pin spacing: 7.5/7.62 mm / 0.295/0.3 inch
- Width: 77.9 mm / 3.067 inch
- Height: 18.2 mm / 0.717 inch
- Height from the surface: 14.2 mm / 0.559 inch
- Depth: 18.3 mm / 0.72 inch
- Solder pin length: 4 mm
- Solder pin dimensions: 0.7 x 0.7 mm
- Drilled hole diameter (tolerance): 1.1 mm (- … +0.1)
- Color: gray
- Material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E) Cu
- Contact plating: tin-plated
- Fire load: 0.246 MJ
- Weight: 14.5 g
- Limit temperature range: -60 … +105 °C
- Packaging type: BOX
- Country of origin: CH
- GTIN: 4044918661737
- Customs Tariff No.: 85369010000
