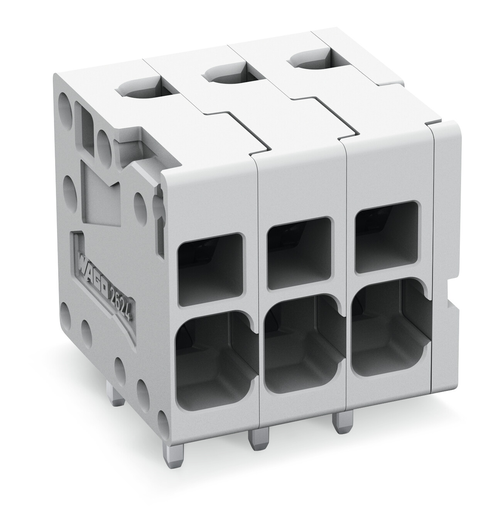

WAGO 26241103 3-pole PCB Terminal Block
The WAGO 2624-1103 is a 3-pole PCB terminal block designed for reliable connections in a variety of industrial applications. Utilizing the Push-in CAGE CLAMP® connection technology, it allows for quick and secure termination of both solid and ferruled conductors. This terminal block is ideal for panel feedthrough applications, offering flexibility in testing and installation. It is rated for a nominal voltage of 320V and a rated current of 41A, ensuring dependable performance in demanding environments. The block's compact design and robust construction make it a versatile choice for various electronic systems.
WAGO 26241103 3-pole PCB Terminal Block Specifications:
- Rated Voltage (III/3): 320 V
- Rated Surge Voltage (III/3): 4 kV
- Rated Voltage (III/2): 400 V
- Rated Surge Voltage (III/2): 4 kV
- Rated Voltage (II/2): 630 V
- Rated Surge Voltage (II/2): 4 kV
- Rated Current: 41 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 26 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 26 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 5 A
- Connection Technology: Push-in CAGE CLAMP®
- Solid Conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Fine-Stranded Conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Fine-Stranded Conductor with Insulated Ferrule: 0.25 … 2.5 mm²
- Fine-Stranded Conductor with Uninsulated Ferrule: 0.25 … 2.5 mm²
- Fine-Stranded Conductor with Twin Ferrule: 0.25 … 1.5 mm²
- Strip Length: 10 … 12 mm / 0.39 … 0.47 inch
- Pin Spacing: 5 mm / 0.197 inch
- Width: 16.5 mm / 0.65 inch
- Height: 19.4 mm / 0.764 inch
- Height from Surface: 15.4 mm / 0.606 inch
- Depth: 16.3 mm / 0.642 inch
- Solder Pin Length: 4 mm
- Solder Pin Dimensions: 0.8 x 1 mm
- Drilled Hole Diameter: 1.3 mm (+0.1)
- Material Group: I
- Insulation Material: Polyamide (PA66)
- Flammability Class UL94: V0
- Clamping Spring Material: Chrome nickel spring steel (CrNi)
- Contact Material: Electrolytic copper (E) Cu
- Contact Plating: tin-plated
- Weight: 4.8 g
- Limit Temperature Range: -60 … +105 °C
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4055143578318
- Customs Tariff Number: 85369010000
