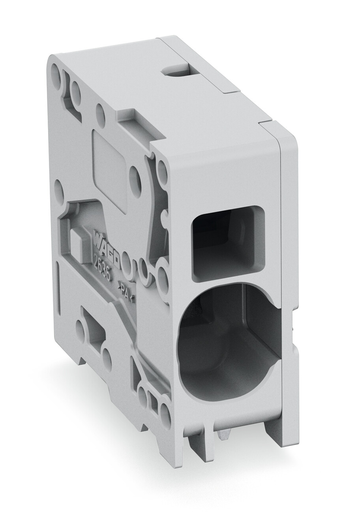

WAGO 26361101 1-Pole PCB Terminal Block
The WAGO 2636-1101 is a robust 1-pole PCB terminal block designed for reliable electrical connections in various industrial applications. Utilizing the innovative Push-in CAGE CLAMP® connection technology, it enables quick and secure termination of both solid and ferruled conductors. The 10 mm pin spacing facilitates efficient layout design, while the gray polyamide (PA66) insulation material ensures excellent insulation properties and flame retardancy (V0 rating). Ideal for panel feedthrough applications, this terminal block supports a nominal voltage of 1000V and a rated current of 76A, making it suitable for demanding electrical environments. It is also compatible with a range of conductor sizes and offers convenient access for testing.
WAGO 26361101 1-Pole PCB Terminal Block Specifications:
- Pin Spacing: 10 mm
- Pole No.: 1
- Rated Voltage (III/3): 1000 V
- Rated Surge Voltage (III/3): 8 kV
- Rated Current: 76 A
- Rated Voltage (II/2): 1000 V
- Rated Surge Voltage (II/2): 8 kV
- Solid Conductor Size: 0.75 … 16 mm²
- Fine-Stranded Conductor Size: 0.75 … 25 mm²
- Fine-Stranded Conductor with Ferrule Size: 0.75 … 16 mm²
- Strip Length: 18 … 20 mm
- Width: 11.6 mm
- Height: 32.6 mm
- Height from Surface: 28.6 mm
- Depth: 29.1 mm
- Solder Pin Length: 4 mm
- Solder Pin Dimensions: 1.2 x 1 mm
- Mounting Type: Feed-through mounting
- Material: Polyamide (PA66)
- Flammability Class: V0
- Weight: 9.8 g
- Rated Voltage UL (Use Group B): 600 V
- Rated Voltage UL (Use Group C): 600 V
- Rated Current CSA (Use Group B): 66 A
- Rated Voltage CSA (Use Group C): 1000 V
Buy the 2636-1101 WAGO 1-Pole PCB Terminal Block | myMectronic
Purchase the WAGO 2636-1101 PCB terminal block securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 26361101?
You can click on the BUY or RFQ button to purchase 26361101 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 26361101?
You can download the 26361101 datasheet or visit the WAGO website for support.
Who is the manufacturer of 26361101?
WAGO
