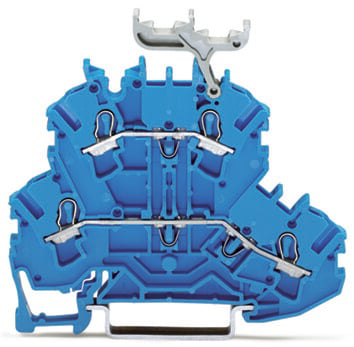

WAGO 20022234 Double-deck Terminal Block
The WAGO 2002-2234 double-deck terminal block is a robust and reliable solution for connecting electrical circuits in demanding environments, particularly those requiring Ex safety certifications. Designed for use with DIN-rail 35 x 15 and 35 x 7.5, this terminal block utilizes WAGO’s Push-in CAGE CLAMP® technology for secure and efficient connections. It is suitable for applications in industrial automation, power distribution, and control systems where safety and reliability are paramount. The terminal block’s double-deck design allows for increased density and efficient space utilization within control cabinets. It is also equipped with a marker carrier for easy identification and organization of wiring.
WAGO 20022234 Double-deck Terminal Block Specifications:
- Nominal voltage (III/3): 500 V
- Rated surge voltage (III/3): 6 kV
- Rated current: 24 A
- Rated current 2: 28 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 20 A
- Rated voltage UL (Use Group C): 300 V
- Rated current UL (Use Group C): 20 A
- Rated voltage UL (Use Group D): 600 V
- Rated current UL (Use Group D): 5 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 20 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 20 A
- Rated voltage EN (Ex e II): 440 V
- Rated current (Ex e II): 20 A
- Rated current (Ex e II) with jumper: 18 A
- Connection technology: Push-in CAGE CLAMP®
- Number of connection points (connection type): 2
- Nominal cross-section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor; with insulated ferrule: 1 … 2.5 mm² / 18 … 14 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Width: 5.2 mm / 0.205 inch
- Height: 69.7 mm / 2.744 inch
- Potential marking: N/N
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Insulation material: Polyamide (PA66)
- Fire load: 0.218 MJ
- Weight: 10.6 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918989794
- Customs tariff number: 85369010000
