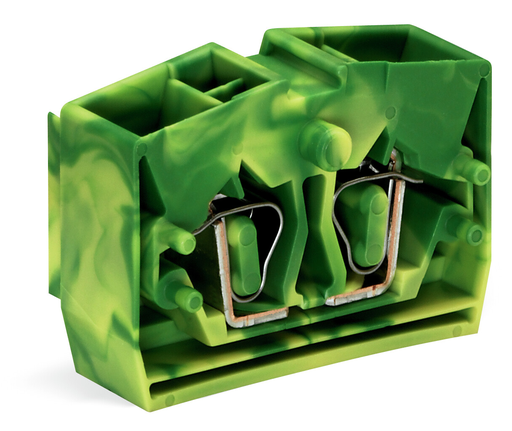

WAGO 264337 4-conductor End Terminal Block
The WAGO 264-337 is a 4-conductor end terminal block designed for reliable electrical connections in various industrial applications. Featuring the innovative CAGE CLAMP® connection technology, it ensures secure and consistent clamping force, simplifying wiring and reducing the risk of errors. This terminal block is ideal for applications requiring horizontal mounting and is compatible with conductors ranging from 0.08 to 2.5 mm². Its robust polyamide (PA66) construction and V0 flammability rating ensure durability and safety in demanding environments. The green-yellow color provides clear visual identification, contributing to efficient maintenance and troubleshooting.
WAGO 264337 4-conductor End Terminal Block Specifications:
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
- Note (conductor cross-section): 12 AWG: THHN, THWN
- Strip length: 8 … 9 mm / 0.31 … 0.35 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Wiring type: Front-entry wiring
- Width: 10 mm / 0.394 inch
- Height from the surface: 22.1 mm / 0.87 inch
- Depth: 32 mm / 1.26 inch
- Design: horizontal type
- Mounting type: Mounting flange
- Marking level: Center marking
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Fire load: 0.108 MJ
- Weight: 6.2 g
- Product Group: 9 (Std. Chassis Mt. Blocks)
- Packaging type: BOX
- Country of origin: CH
- GTIN: 4044918414647
- Customs tariff number: 85369010000
