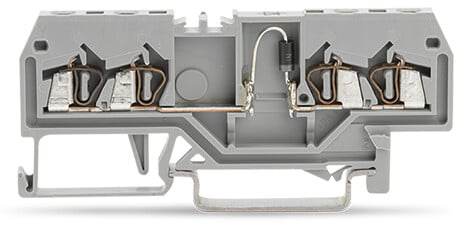

WAGO 279815281410 4-conductor diode terminal block
The WAGO 279-815/281-410 is a 4-conductor diode terminal block designed for secure and efficient diode connections in industrial applications. It incorporates WAGO's renowned CAGE CLAMP® connection technology, ensuring reliable and vibration-resistant terminations. The block is suitable for front-entry wiring, horizontal design, and DIN rail mounting, making it ideal for control cabinets and automation systems. Its compact dimensions and clear marking contribute to organized and maintainable electrical installations. The terminal block is constructed from durable polyamide 66, offering excellent insulation and fire resistance.
WAGO 279815281410 4-conductor diode terminal block Specifications:
- supplier: WAGO
- item_no: 279-815/281-410
- gtin_ean: 4050821275398
- content: 1
- order_amount: 100
- total_number_of_connection_points: 4
- total_number_of_potentials: 1
- color: gray
- ratings_iec_en_60947_7_1: IEC/EN 60947-7-1
- nominal_current_a: 0.5
- nominal_voltage_v: 250
- reverse_voltage_v: 1000
- connection_technology_1: CAGE CLAMP®
- solid_sizes_1: 0.08 … 1.5 mm² / 28 … 16 AWG
- fine_stranded_wires_1: 0.08 … 1.5 mm² / 28 … 16 AWG
- strip_length_1: 8 … 9 mm / 0.31 … 0.35 in
- type_of_wiring: Front-entry wiring
- design: horizontal
- marking_level: Center marking
- insulating_material: Polyamide 66 (PA 66)
- fire_load_mj: 0.132
- weight_g: 6.838
- width: 4 mm / 0.157 in
- height_from_upper_edge_of_din_rail_mm: 27
- height_from_upper_edge_of_din_rail: 27 mm / 1.063 in
- length: 73 mm / 2.874 in
- type_of_mounting: DIN 35 rail
