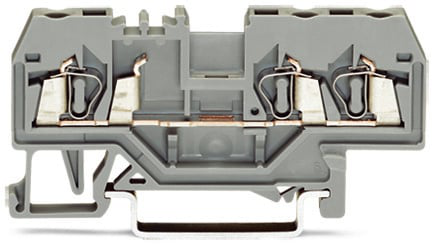

WAGO 280681 3-Conductor Through Terminal Block
The WAGO 280-681 is a versatile 3-conductor through terminal block suitable for a wide range of industrial applications, particularly those utilizing DIN 35 rail mounting systems. It provides a reliable and secure connection for wires with cross-sections ranging from 0.08 to 2.5 mm² (28-12 AWG). The block is rated for voltages up to 800V and currents up to 24A, making it suitable for power distribution and signal transmission in control cabinets and machinery. Its compact dimensions (28mm height, 5mm width, 64mm depth) and center marking facilitate easy and accurate installation.
WAGO 280681 3-Conductor Through Terminal Block Specifications:
- Cross section1: 0.08 - 2.5 mm²
- Cross section2: 28 - 12 AWG
- Strip length: 8 - 9 mm
- Measured voltage: 800 V
- Measured shock voltage: 8 kV
- Pollution degree: 3
- Current intensity: 24 A
- Height: 28 mm
- Width: 5 mm
- Depth: 64 mm
- No. of connection Points: 3
- No. of potentials: 1
- COLOR: grau
- WEIGHT: 7.66 g
Buy the 280-681 WAGO 3-Conductor Through Terminal Block | myMectronic
Purchase the WAGO 280-681 terminal block securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 280681?
You can click on the BUY or RFQ button to purchase 280681 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 280681?
You can download the 280681 datasheet or visit the WAGO website for support.
Who is the manufacturer of 280681?
WAGO
