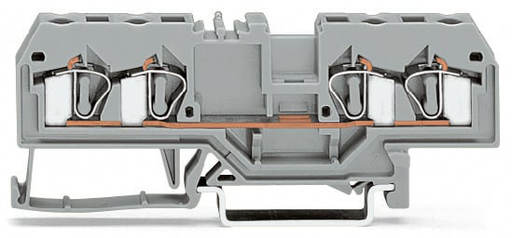

WAGO 281653 4-conductor Through Terminal Block
The WAGO 281-653 4-conductor through terminal block provides a secure and efficient solution for connecting multiple conductors in a compact space. Utilizing WAGO’s innovative CAGE CLAMP® connection technology, it ensures reliable and vibration-resistant connections. This terminal block is ideal for applications requiring high voltage and current capacity, such as power distribution panels, control cabinets, and industrial machinery. Its horizontal design and DIN rail mounting capability simplify installation and maintenance. The block is also compatible with a range of accessories, including insulation stops and jumper bars, allowing for customized configurations and efficient wiring.
WAGO 281653 4-conductor Through Terminal Block Specifications:
- Total number of connection points: 4
- Total number of potentials: 1
- Color: orange
- Pollution degree (1): 3
- Rated voltage EN (1) [V]: 800
- Rated surge voltage (1) [kV]: 8
- Nominal current [A]: 26
- Connection technology (1): CAGE CLAMP®
- Cross section from (1) [mm²]: 0.08
- Cross section up to (1) [mm²]: 4
- Cross section from (1) [AWG]: 28
- Cross section up to (1) [AWG]: 12
- Stripped length from (1) [mm]: 9
- Stripped length up to (1) [mm]: 10
- Stripped length (1) [in]: 0.37
- Type of wiring: Front-entry wiring
- Design: horizontal
- Marking level: Center marking
- Fire load [MJ]: 0.205
- Weight [g]: 12.663
- Width [mm]: 6
- Width [in]: 0.236
- Height [mm]: 29
- Height [in]: 1.142
- Length [mm]: 86
- Length [in]: 3.386
- Type of mounting: DIN 35 rail
Buy the 281-653 WAGO 4-conductor Through Terminal Block | myMectronic
Purchase the WAGO 281-653 4-conductor through terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 281653?
You can click on the BUY or RFQ button to purchase 281653 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 281653?
You can download the 281653 datasheet or visit the WAGO website for support.
Who is the manufacturer of 281653?
WAGO
