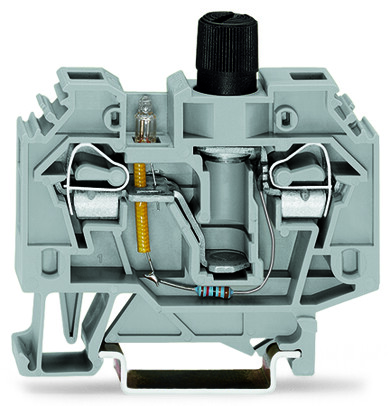

WAGO 282128281418 2-Conductor Fuse Terminal Block
The WAGO 282-128/281-418 fuse terminal block provides a safe and convenient solution for incorporating fuses into electrical circuits. Designed for use with glass cartridge fuses (1/4 x 1 1/4), this terminal block includes a neon lamp for visual indication of fuse status. Its robust construction and CAGE CLAMP® connection ensure reliable performance in industrial automation, power distribution, and control panel applications. The block is suitable for mounting on TS 35 rails and supports a wide range of wire gauges.
WAGO 282128281418 2-Conductor Fuse Terminal Block Specifications:
- Product Description: 2-Conductor fuse terminal block with neon lamp AC/DC 120V for glass cartridge type fuses 1/4 x 1 1/4
- Packing Unit: 40 pieces
- Cross Section (mm²): 0.2 - 6 mm²
- Cross Section (AWG): 24 - 10 AWG
- Connection Method: CAGE CLAMP®CONNECTION
- Measured Voltage EN: 110 V
- Current Intensity EN: 10 A
- Weight: 27.6 g
- Color: grey
- Wiring Type: Side-entry
- Number of Connection Points: 2
- Number of Potentials: 2
- Height: 56.5 mm
- Height (in): 2.224 in
- Width: 13 mm
- Width (in): 0.512 in
- Depth: 62 mm
- Depth (in): 2.44 in
- Strip Length From: 12 mm
- Strip Length To: 13 mm
- Mounting: TS 35
- Admission Office: CCA NL5470
- Approval Number: 154112-1505033
- Voltage (V): 220 V
- Current (A): 6 / 10 A
- KEMA Approval: 98.2759.05
- PRS Approval: TE/1718/880590/08
- UR Approval: E45172
