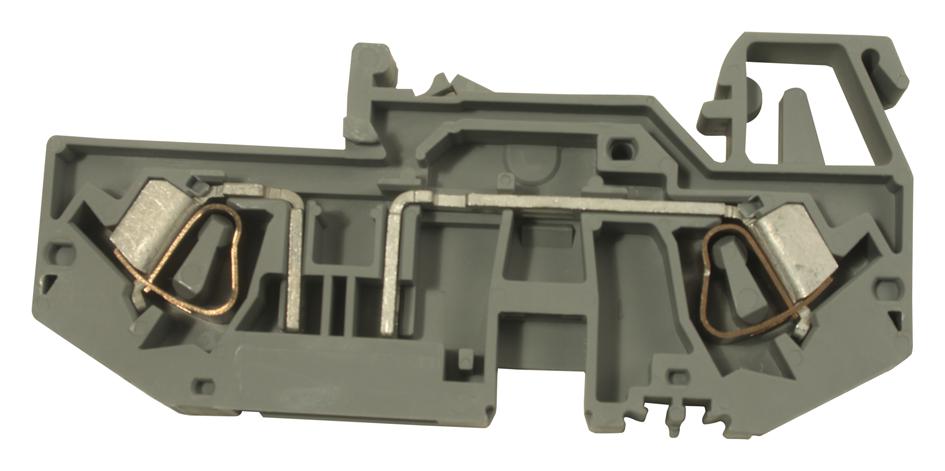

WAGO 282696 2-Conductor Fuse Terminal Block
The WAGO 282-696 is a 2-conductor fuse terminal block specifically engineered for use with mini-automotive blade-type fuses. Its design incorporates a center marking, facilitating easy testing and troubleshooting. This terminal block is suitable for various industrial applications requiring reliable fuse protection and secure connections. It supports wire cross-sections from 0.2 to 6 mm² (24-10 AWG) and is rated for a measured voltage of 400V and a current intensity of 25A. The pollution degree is rated for 3.
WAGO 282696 2-Conductor Fuse Terminal Block Specifications:
- Cross section1: 0.2 - 6 mm²
- Cross section2: 24 - 10 AWG
- Strip length: 12 - 13 mm
- Measured voltage: 400 V
- Measured shock voltage: 6 kV
- Pollution degree: 3
- Current intensity: 25 A
- Height: 33.5 mm
- Width: 8 mm
- Depth: 85 mm
- No. of connection Points: 2
- No. of potentials: 2
- COLOR: grau
- WEIGHT: 17.22 g
Buy the 282-696 WAGO 2-Conductor Fuse Terminal Block | myMectronic
Purchase the WAGO 282-696 fuse terminal block securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 282696?
You can click on the BUY or RFQ button to purchase 282696 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 282696?
You can download the 282696 datasheet or visit the WAGO website for support.
Who is the manufacturer of 282696?
WAGO
