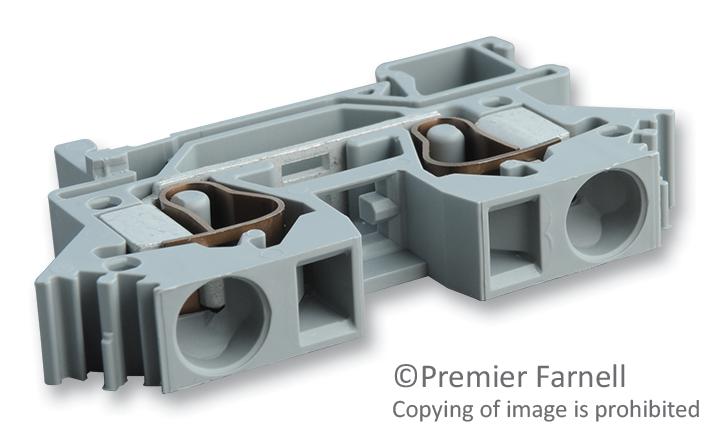

WAGO 284601 2-conductor Through Terminal Block
The WAGO 284-601 is a robust and reliable 2-conductor through terminal block ideal for use in industrial control and power distribution systems. Its CAGE CLAMP® connection ensures a secure and vibration-resistant connection, simplifying installation and maintenance. The terminal block is designed for DIN-rail mounting, optimizing space utilization in control cabinets. Constructed from high-quality polyamide 66, it offers excellent insulation and durability, ensuring long-term performance in demanding environments. Suitable for a wide range of applications including automation, machinery, and power supplies.
WAGO 284601 2-conductor Through Terminal Block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 57 A
- Connection technology: CAGE CLAMP®
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
- Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
- Strip length: 12 … 13 mm / 0.47 … 0.51 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 10 mm / 0.394 inch
- Height from upper-edge of DIN-35 rail: 33.5 mm / 1.319 inch
- Depth: 69 mm / 2.717 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Side marking
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.253 MJ
- Weight: 18.9 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918486361
- Customs Tariff No.: 85369010000
Buy the 284-601 WAGO 2-conductor Through Terminal Block | myMectronic
Purchase the WAGO 284-601 terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 284601?
You can click on the BUY or RFQ button to purchase 284601 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 284601?
You can download the 284601 datasheet or visit the WAGO website for support.
Who is the manufacturer of 284601?
WAGO
