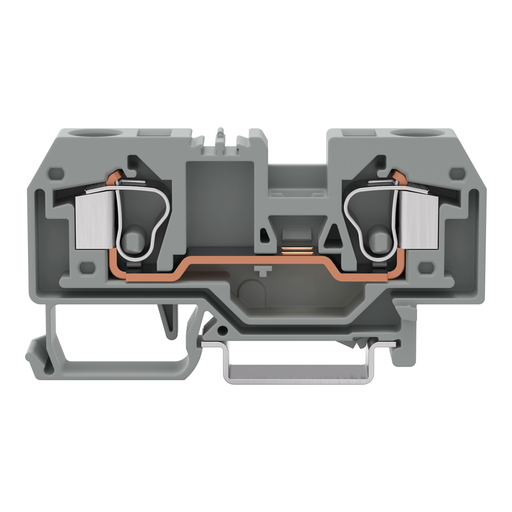

WAGO 284902 2-Conductor Through Terminal Block
The WAGO 284-902 is a robust and reliable 2-conductor through terminal block suitable for a wide range of industrial applications. Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, it offers a compact and space-saving solution for electrical distribution. The CAGE CLAMP® connection ensures a secure and vibration-resistant connection for conductors ranging from 0.2 to 10 mm². Its orange color facilitates easy identification in complex electrical systems. This terminal block is ideal for control cabinets, automation systems, and general electrical installations where reliable and efficient connections are essential.
WAGO 284902 2-Conductor Through Terminal Block Specifications:
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 57 A
- Connection technology: CAGE CLAMP®
- Connectable conductor materials: Copper
- Solid conductor: 0.2 … 10 mm² / 24 … 8 AWG
- Fine-stranded conductor: 0.2 … 10 mm² / 24 … 8 AWG
- Strip length: 12 … 13 mm / 0.47 … 0.51 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Width: 10 mm / 0.394 inch
- Height from upper-edge of DIN-35 rail: 35 mm / 1.378 inch
- Depth: 78 mm / 3.071 inch
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center marking
- Color: orange
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.348 MJ
- Weight: 23.2 g
- Product Group: 1 (Rail Mounted Terminal Blocks)
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918305754
- Customs Tariff No.: 85369010000
