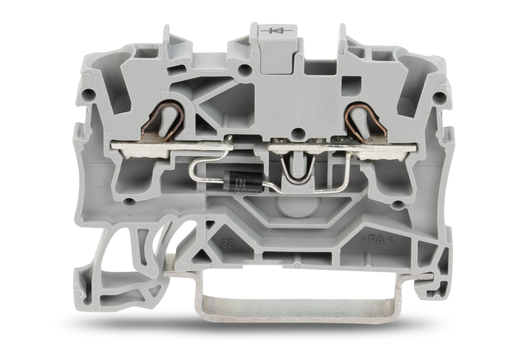

WAGO 200212111000411 2-conductor Terminal Block
The WAGO 2002-1211/1000-411 terminal block provides a reliable and efficient solution for connecting electrical circuits. Featuring a built-in diode and Push-in CAGE CLAMP® technology, this block ensures secure and lasting connections. Designed for DIN-rail mounting, it's ideal for industrial automation, control panels, and power distribution systems. The block accommodates a variety of conductor sizes and materials, offering versatility in different applications. Its robust construction and compact design make it a practical choice for demanding environments.
WAGO 200212111000411 2-conductor Terminal Block Specifications:
- Nominal Voltage: 250 V
- Reverse Voltage: 1,000 V
- Rated Current: 0.003 A
- Connection Technology: Push-in CAGE CLAMP®
- Actuation Type: Push-in
- Connectable Conductor Materials: Copper
- Nominal Cross Section: 2.5 mm²
- Solid Conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid Conductor, Push-in Termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-Stranded Conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-Stranded Conductor with Ferrule with Plastic Collar: 1 … 2.5 mm² / 18 … 12 AWG
- Fine-Stranded Conductor with Ferrule, Push-in Termination, from: 1 … 2.5 mm² / 18 … 12 AWG
- Strip Length: 10 … 12 mm / 0.39 … 0.47 inch
- Total Number of Connection Points: 2
- Total Number of Potentials: 1
- Number of Levels: 1
- Type of Wiring: Front-entry wiring
- Width: 5.2 mm / 0.205 inch
- Height from Upper-Edge of DIN-35 Rail: 32.9 mm / 1.295 inch
- Depth: 48.5 mm / 1.909 inch
- Design: horizontal
- Type of Mounting: DIN-35 rail
- Marking Level: Center/side marking
- Insulating Material: Polyamide 66 (PA 66)
- Fire Load: 0.129 MJ
- Weight: 5.3 g
- Product Group: 22 (TOPJOB S)
- Packaging Type: BOX
- Country of Origin: CN
- GTIN: 4045454537647
- Customs Tariff No.: 85369010000
