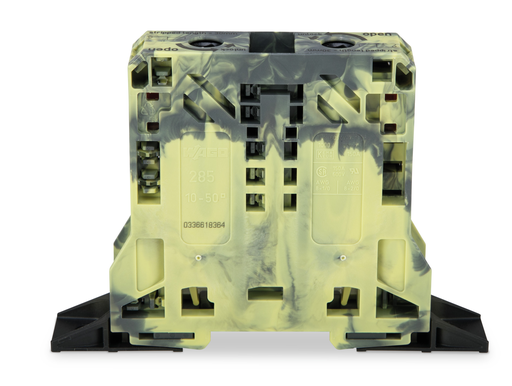

WAGO 285147 2-conductor terminal block
The WAGO 285-147 terminal block provides a reliable and efficient connection solution for various industrial applications. Its POWER CAGE CLAMP technology ensures a secure and gas-tight connection for conductors, while the lateral marker slots allow for clear and organized labeling. Designed with a horizontal mounting flange, this terminal block is ideal for use in control cabinets and distribution panels where space is at a premium. The polyamide 66 (PA 66) insulating material offers excellent electrical insulation and durability, making it suitable for demanding environments.
WAGO 285147 2-conductor terminal block Specifications:
- Rated voltage (III / 3): 1000 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 150 A
- Connection technology: POWER CAGE CLAMP
- Connectable conductor materials: Copper
- Solid conductor: 10 … 50 mm² / 8 … 1/0 AWG
- Fine-stranded conductor: 10 … 70 mm² / 8 … 2/0 AWG
- Strip length: 30 mm / 1.18 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Width: 20 mm / 0.787 inch
- Height: 94 mm / 3.7 inch
- Height from the surface: 94 mm / 3.7 inch
- Depth: 130 mm / 5.118 inch
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Side marking
- Color: dark gray-yellow
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0 MJ
- Weight: 165.07 g
- Country of origin: PL
- GTIN: 4055143608336
- Customs Tariff No.: 85369010000
