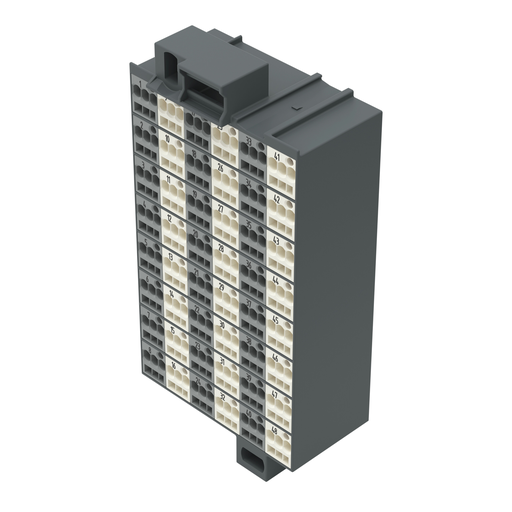

WAGO 726421 48-pole Matrix Patchboard
The WAGO 726-421 matrix patchboard provides a versatile and space-saving solution for connecting and routing signals in industrial environments. Its 48 poles allow for numerous connection possibilities, while the CAGE CLAMP® connection technology ensures secure and reliable terminations. The patchboard's modular design and clear marking facilitate easy identification and modification of connections, reducing downtime and improving overall system efficiency. Suitable for applications in automation, control systems, and machine building, the 726-421 contributes to streamlined and flexible wiring solutions.
WAGO 726421 48-pole Matrix Patchboard Specifications:
- Rated Voltage: 500 V
- Rated Impulse Voltage: 6 kV
- Rated Current: 10 A
- Connection Type: CAGE CLAMP®
- Number of Connection Points: 3
- Solid Conductor Size: 0.08 … 1.5 mm² / 28 … 16 AWG
- Fine-Stranded Conductor Size: 0.08 … 1.5 mm² / 28 … 16 AWG
- Strip Length: 8 … 10 mm / 0.31 … 0.39 inch
- Number of Poles: 48
- Width: 65.3 mm / 2.571 inch
- Height: 132 mm / 5.197 inch
- Depth: 36.5 mm / 1.437 inch
- Color: dark gray
- Module Color: gray/white
- Fire Load: 4.096 MJ
- Weight: 246.1 g
- Connection Type 1: Side 1
- Connection Type 2: Side 2
- Type of Wiring: Front-entry wiring
- Country of Origin: DE
- GTIN: 4044918455299
- Customs Tariff No.: 85369010000
