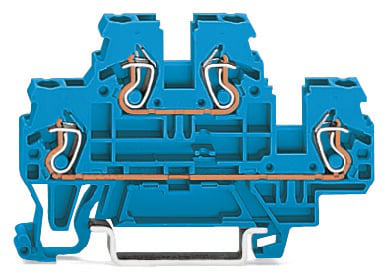

WAGO 870504 Double-deck Terminal Block
The WAGO 870-504 double-deck terminal block provides a reliable and space-saving connection solution for industrial applications. Designed for mounting on DIN rails 35 x 15 and 35 x 7.5, this terminal block utilizes WAGO’s innovative CAGE CLAMP® connection technology, ensuring secure and vibration-resistant connections. It is rated for a nominal voltage of 500 V and a rated current of 24 A, making it suitable for a wide range of power distribution and control circuits. The terminal block’s blue color and clear marking options enhance organization and troubleshooting in electrical panels. It is also certified for use in Ex i applications, ensuring safety in hazardous environments.
WAGO 870504 Double-deck Terminal Block Specifications:
- Rated Voltage: 500 V
- Rated Surge Voltage: 6 kV
- Rated Current: 24 A
- Connection Technology: CAGE CLAMP®
- Solid Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor Size: 0.08 … 4 mm² / 28 … 12 AWG
- Insulated Ferrule Size: 0.08 … 1.5 mm² / 28 … 14 AWG
- Strip Length: 6 … 7 mm / 0.24 … 0.28 inch
- Number of Connection Points: 4
- Number of Potentials: 2
- Number of Levels: 2
- Width: 5 mm / 0.197 inch
- Height: 70 mm / 2.756 inch
- Depth from Upper Edge: 40 mm / 1.575 inch
- Material Color: blue
- Fire Load: 0.166 MJ
- Weight: 9.9 g
- Packaging Type: BOX
- Country of Origin: DE
- GTIN: 4044918630917
- Customs Tariff Number: 85369010000
