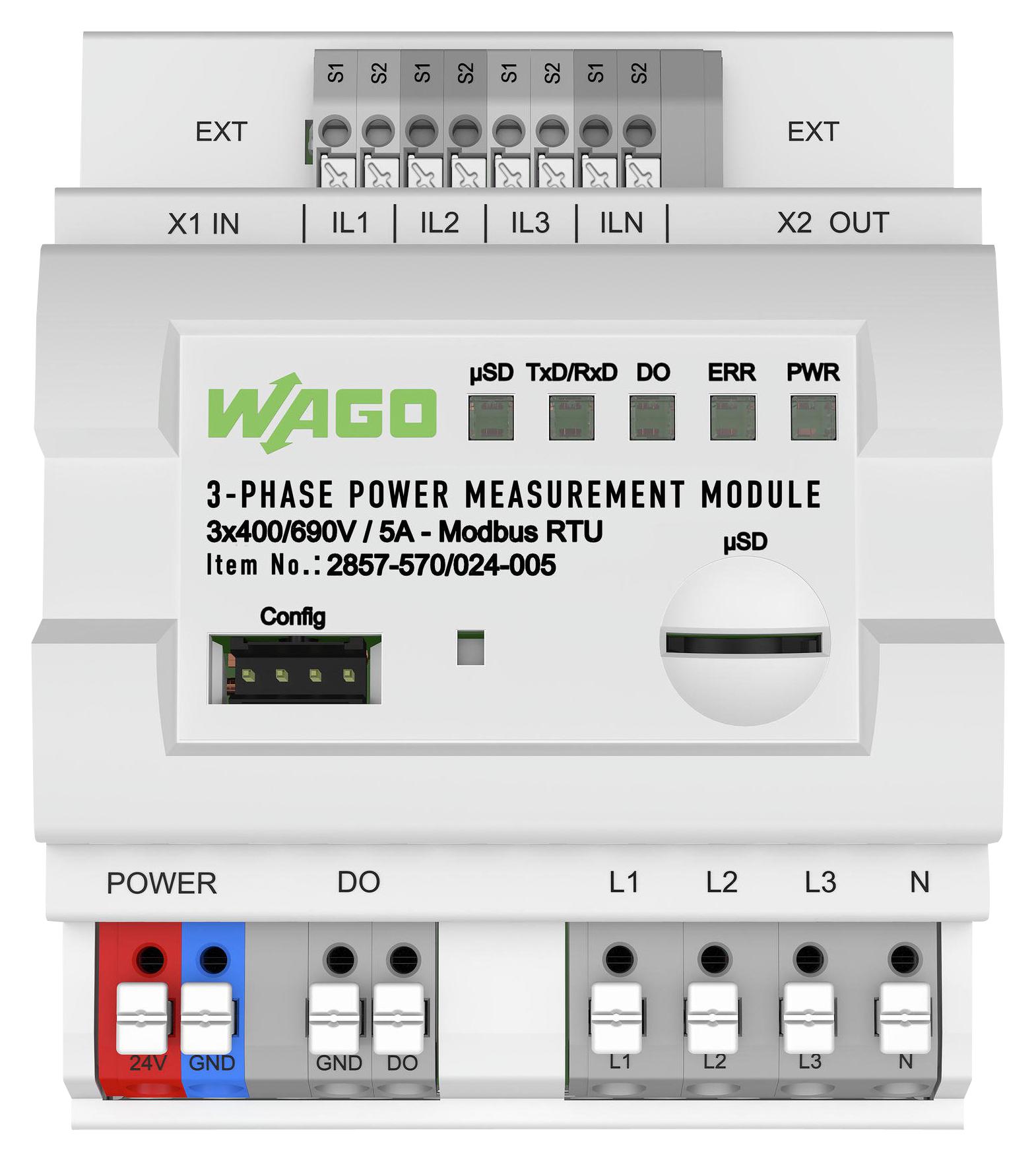

WAGO 2857570024000 Power Measurement Module
The 3-phase power measurement module in a DIN-rail enclosure measures electrical parameters such as active, apparent, reactive power, energy, power factor, phase angle, and frequency in three-phase supply networks. It features current measurement using Rogowski Coils, remote measurement and storage on microSD cards, and configuration via software. The device communicates through Modbus RTU over RS-485, with configurable digital outputs, making it suitable for building technology and industrial applications. Compact and versatile, it ensures accurate power monitoring and analysis in complex electrical systems.
WAGO 2857570024000 Power Measurement Module Specifications:
- Measurement method: True RMS acquisition with 8 kHz
- Input signal type: AC voltage 400/690 V, current via Rogowski Coils
- Measurement range: 4x AC 4000 A
- Frequency range: 45 ...65 Hz (Harmonics analysis: 0...3.3 KHz)
- Supply voltage: 24 VDC ±10%
- Power consumption: approx. 30 mA at 24 VDC
- Digital output: Configurable pulse signals, max switching voltage 30 V, max current 50 mA
- Communication interface: Modbus RTU via RS-485, RJ-45 connector, max 32 devices
- Protection class: IP20
- Operating temperature: -40°C to +70°C
- Dimensions: Width 72 mm, Height 55 mm, Depth 90 mm, DIN-rail mounting
- Certifications: CE, compliant with EN 61000-6-2, EN 61000-6-3, EN 61010-1
- Memory: microSD card slot for data storage
- Environmental conditions: Relative humidity 5-95%, non-condensing
Buy the WAGO Series Power Measurement: 3-Phase Power Measurement Module 2857-570/024-000
Purchase the WAGO power measurement module online today to effortlessly monitor three-phase electrical parameters such as power, energy, and frequency. This compact device offers remote data storage on microSD cards, configurable digital outputs, and seamless Modbus RTU communication for industrial and building automation. Easy to install on DIN-rail, it ensures precise measurement and reliable data analysis. Enhance your power management system now with this versatile and high-performance power transducer, suitable for complex electrical networks and energy optimization.
Buy WAGO 2857-570/024-000 power measurement module now and experience reliable, accurate three-phase electrical monitoring with advanced communication features.
