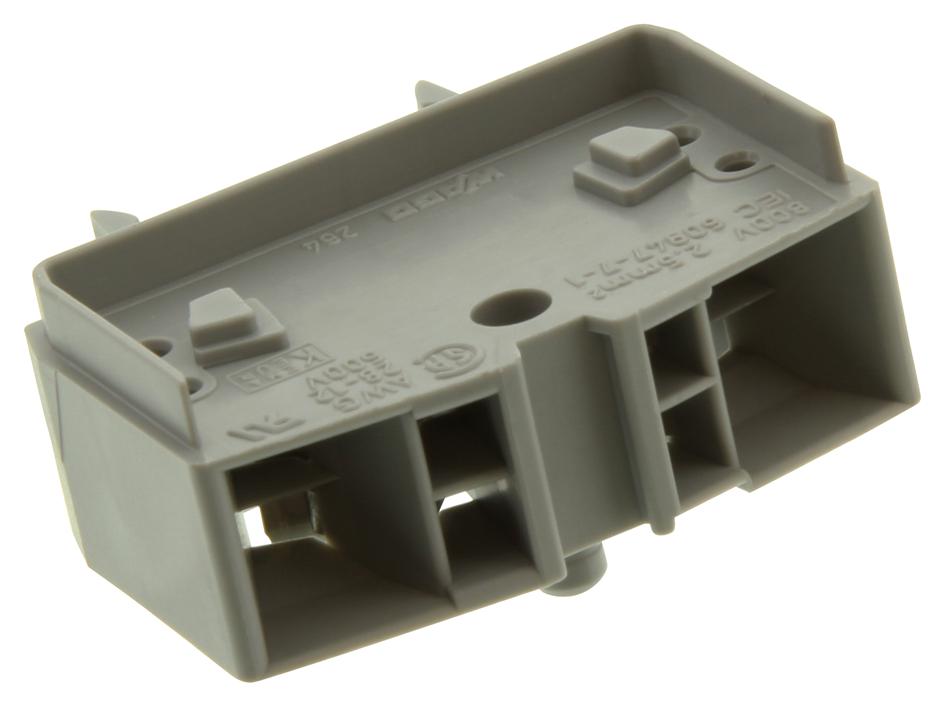

WAGO 264721 4-conductor Terminal Block
The WAGO 264-721 is a robust and reliable 4-conductor miniature through terminal block, ideal for use in industrial control panels and automation systems. Its CAGE CLAMP® connection technology ensures secure and vibration-resistant connections, while the test option allows for easy circuit testing. The center marking simplifies identification and wiring. Designed for DIN-15 rail mounting, this terminal block offers a space-saving and organized solution for electrical connections. It is suitable for applications requiring reliable power distribution and signal transmission.
WAGO 264721 4-conductor Terminal Block Specifications:
- Nominal Voltage (III/3): 800 V
- Rated Surge Voltage (III/3): 8 kV
- Rated Current: 24 A
- Connection Technology: CAGE CLAMP®
- Actuation Type: Operating tool
- Connectable Conductor Materials: Copper
- Solid Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Number of Connection Points: 4
- Number of Potentials: 1
- Number of Levels: 1
- Wiring Type: Front-entry wiring
- Width: 10 mm / 0.394 inch
- Height from Upper-Edge of DIN-Rail: 24.5 mm / 0.965 inch
- Depth: 32 mm / 1.26 inch
- Design: horizontal type
- Mounting Type: DIN-15 rail
- Marking Level: Center marking
- Color: gray
- Fire Load: 0.104 MJ
- Weight: 6.1 g
- Product Group: 9 (Std. Chassis Mt. Blocks)
- Packaging Type: BOX
- Country of Origin: CH
- GTIN: 4044918414845
- Customs Tariff Number: 85369010000
