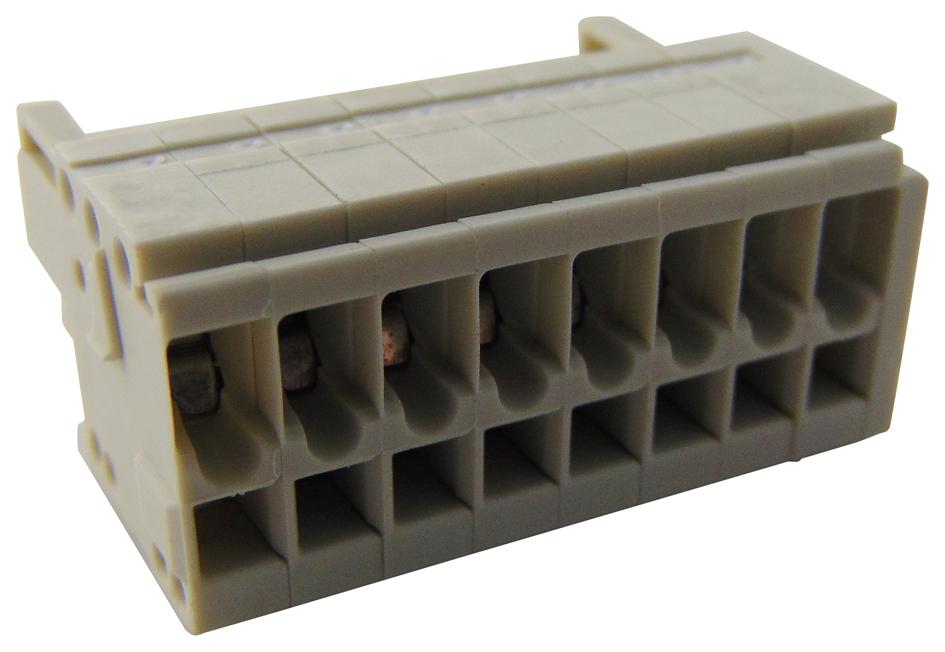

WAGO 734108 8-pole Female Connector
The WAGO 734-108 is a robust 8-pole female connector within the MCS – MULTI CONNECTION SYSTEM. It utilizes WAGO’s innovative CAGE CLAMP actuation, enabling easy cable pre-assembly and on-unit wiring. The connector offers universal compatibility with various conductor types and provides 100% protection against mismating. Its compact design and reliable connection make it ideal for applications in control cabinets, automation systems, and power distribution. The connector is also designed to be safe, with considerations for live disconnection and ensuring header pins are not live when unmated. It is suitable for use in a variety of industrial environments.
WAGO 734108 8-pole Female Connector Specifications:
- Rated voltage (III/3): 160 V
- Rated surge voltage (III/3): 2.5 kV
- Rated voltage (III/2): 160 V
- Rated surge voltage (III/2): 2.5 kV
- Rated current: 10 A
- Pin spacing: 3.5 mm
- Pole No.: 8
- Total number of connection points: 8
- Total number of potentials: 8
- Solid conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
- Fine-stranded conductor: 0.08 … 1.5 mm² / 28 … 14 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
- Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm²
- Strip length: 6 … 7 mm / 0.24 … 0.28 inch
- Width: 30.2 mm / 1.189 inch
- Height: 13.4 mm / 0.528 inch
- Depth: 18.6 mm / 0.732 inch
- Material: Polyamide (PA66)
- Flammability class per UL94: V0
- Weight: 6.1 g
- Limit temperature range: -60 … +100 °C
Buy the 734-108 WAGO 8-pole Female Connector | myMectronic
Purchase the WAGO 734-108 connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 734108?
You can click on the BUY or RFQ button to purchase 734108 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 734108?
You can download the 734108 datasheet or visit the WAGO website for support.
Who is the manufacturer of 734108?
WAGO
