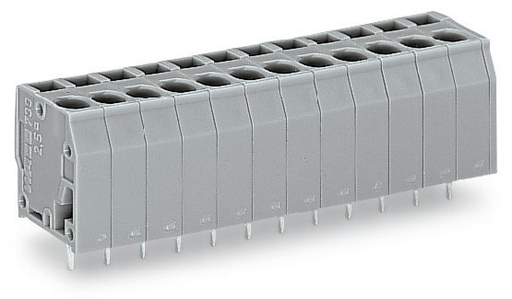

WAGO 739108 8-pole PCB Terminal Block
The WAGO 739-108 is a PCB terminal block designed for efficient and reliable power transmission in a variety of industrial applications. Its CAGE CLAMP® connection ensures a secure and vibration-resistant connection, simplifying installation and maintenance. The compact design allows for space-saving integration into printed circuit boards, making it ideal for dense electronic assemblies. It is rated for 320V and 24A, and supports a wide range of conductor sizes, making it a versatile solution for power distribution in control cabinets, automation systems, and other industrial equipment. The terminal block is also compliant with various international safety standards, ensuring safe and dependable operation.
WAGO 739108 8-pole PCB Terminal Block Specifications:
- Rated Voltage (III/3): 320 V
- Rated Surge Voltage (III/3): 4 kV
- Rated Voltage (III/2): 320 V
- Rated Surge Voltage (III/2): 4 kV
- Rated Voltage (II/2): 630 V
- Rated Surge Voltage (II/2): 4 kV
- Rated Current: 24 A
- Rated Voltage UL (Use Group B): 300 V
- Rated Current UL (Use Group B): 20 A
- Rated Voltage UL (Use Group D): 300 V
- Rated Current UL (Use Group D): 10 A
- Rated Voltage CSA (Use Group B): 300 V
- Rated Current CSA (Use Group B): 12 A
- Rated Voltage CSA (Use Group D): 300 V
- Rated Current CSA (Use Group D): 10 A
- Connection Technology: CAGE CLAMP®
- Solid Conductor Size: 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-Stranded Conductor Size: 0.08 … 2.5 mm² / 28 … 12 AWG
- Fine-Stranded Conductor with Ferrule Size: 0.25 … 1.5 mm² (insulated), 0.25 … 2.5 mm² (uninsulated)
- Strip Length: 8 … 9 mm / 0.31 … 0.35 inch
- Pin Spacing: 5 mm / 0.197 inch
- Width: 41.5 mm / 1.634 inch
- Height: 19 mm / 0.748 inch
- Height from Surface: 15.8 mm / 0.622 inch
- Depth: 14.3 mm / 0.563 inch
- Solder Pin Length: 3.2 mm
- Solder Pin Dimensions: 0.8 x 1.2 mm
- Drilled Hole Diameter: 1.6 (+0.1) mm
- Material (Insulation): Polyamide (PA66)
- Flammability Class: V0
- Weight: 9.3 g
- Operating Temperature Range: -60 … +105 °C
