WAGO 20911106 pluggable female connector

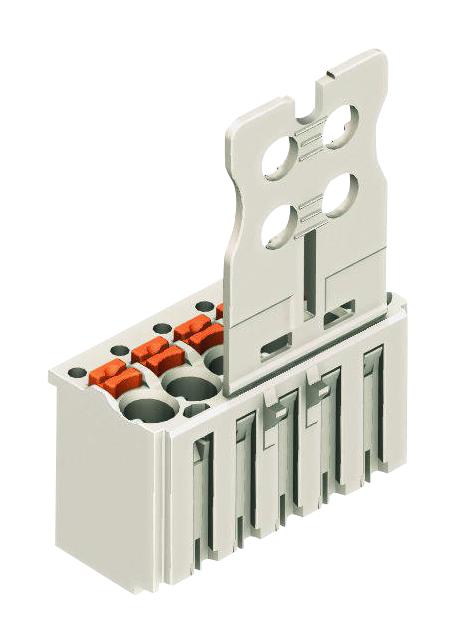

The 2091-1106 is a 6-pole female plug in the picoMAX pluggable connection system, featuring a gripping plate, push-in termination for solid and ferruled conductors, and integrated locking latches to prevent accidental disconnection. Designed for reliable electrical connections, its lightweight and compact structure makes it suitable for industrial automation. It supports a voltage rating of up to 160V, a rated current of 10A, and is compliant with safety standards including UL and IEC. The plug accommodates conductors with a strip length of 8-9mm, with a pin spacing of 3.5mm, and is made from durable polyphthalamide with tin-plated electrolytic copper contacts.
WAGO 20911106 pluggable female connector Specifications:
- Pin spacing: 3.5mm / 0.138 inch
- Width: 21mm / 0.827 inch
- Height: 33mm / 1.299 inch
- Depth: 11.4mm / 0.449 inch
- Rated voltage: 160V (IEC), 300V (UL)
- Rated impulse voltage: 2.5kV
- Rated current: 10A
- Connection: Push-in CAGE CLAMP
- Conductor size: 0.2-1.5mm² / 24-14 AWG
- Material: Polyphthalamide (PPA GF), contact material: electrolytic copper with tin-plating
- Flammability class: UL94VO
- Temperature range: -60°C to +100°C
- Color: Light gray
- Mismating protection: No
Buy the WAGO 2091-1106 – Reliable Female Connector for Industrial Applications
Order the WAGO 2091-1106 today to ensure reliable, safe, and high-quality electrical connections in your industrial automation projects. This 6-pole female connector features push-in termination, lockable design, and robust materials suitable for demanding environments. With a voltage rating up to 160V and current capacity of 10A, it guarantees secure connections for solid and ferruled conductors. Its compact form and compliance with UL and IEC standards make it ideal for seamless integration into various control systems and automation solutions. Buy online now for quick delivery and consistent performance.
Get WAGO 2091-1106 today—designed for secure, durable electrical connections in industrial automation.
Frequently Asked Questions
Where can I buy WAGO 20911106?
You can click on the BUY or RFQ button to purchase 20911106 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 20911106?
You can download the 20911106 datasheet or visit the WAGO website for support.
Who is the manufacturer of 20911106?
WAGO
