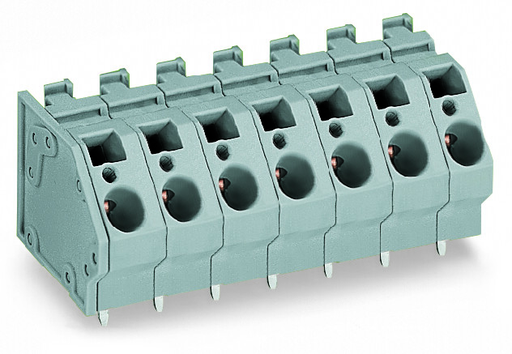

WAGO 745357 7-pole PCB Terminal Block
The WAGO 745-357 is a 7-pole PCB terminal block designed for robust and reliable connections in a variety of industrial applications. Featuring WAGO’s innovative CAGE CLAMP® connection technology, this terminal block ensures secure and consistent clamping of conductors, minimizing the risk of disconnection. The double solder pins provide exceptional mechanical stability, making it suitable for demanding environments. With a 6mm² wire size capacity and 10mm pin spacing, it offers flexibility in PCB layout design. The terminal block is also equipped with a marker slot for easy identification and organization. It is RoHS compliant and holds various approvals including UL, CSA, and CCA, ensuring adherence to industry standards.
WAGO 745357 7-pole PCB Terminal Block Specifications:
- Rated voltage (III / 3): 630 V
- Rated impulse voltage (III / 3): 8 kV
- Rated voltage (III / 2): 1000 V
- Rated impulse voltage (III / 2): 8 kV
- Rated voltage (II / 2): 1000 V
- Rated impulse voltage (II / 2): 8 kV
- Rated current: 41 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 30 A
- Rated voltage UL (Use Group C): 150 V
- Rated current UL (Use Group C): 30 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 30 A
- Rated voltage CSA (Use Group C): 150 V
- Rated current CSA (Use Group C): 30 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 10 A
- Connection technology: CAGE CLAMP®
- Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.25 … 4 mm²
- Fine-stranded conductor with ferrule without plastic collar: 0.25 … 4 mm²
- Strip length: 11 … 12 mm / 0.43 … 0.47 inch
- Conductor entry angle to the PCB: 45 °
- No. of poles: 7
- Total number of connection points: 7
- Total number of potentials: 7
- Number of connection types: 1
- Number of levels: 1
- Number of jumper slots: 1
- Pin spacing: 10 mm / 0.394 inch
- Width: 69.1 mm / 2.72 inch
- Height: 27.5 mm / 1.083 inch
- Height from the surface: 23 mm / 0.906 inch
- Depth: 29.1 mm / 1.146 inch
- Solder pin length: 4.5 mm
- Solder pin dimensions: 1 x 1.4 mm
- Drilled hole diameter (tolerance): 1.8 mm (- … +0.1)
- Material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E Cu)
- Contact plating: tin-plated
- Fire load: 0.682 MJ
- Weight: 37.9 g
- Limit temperature range: -60 … +105 °C
