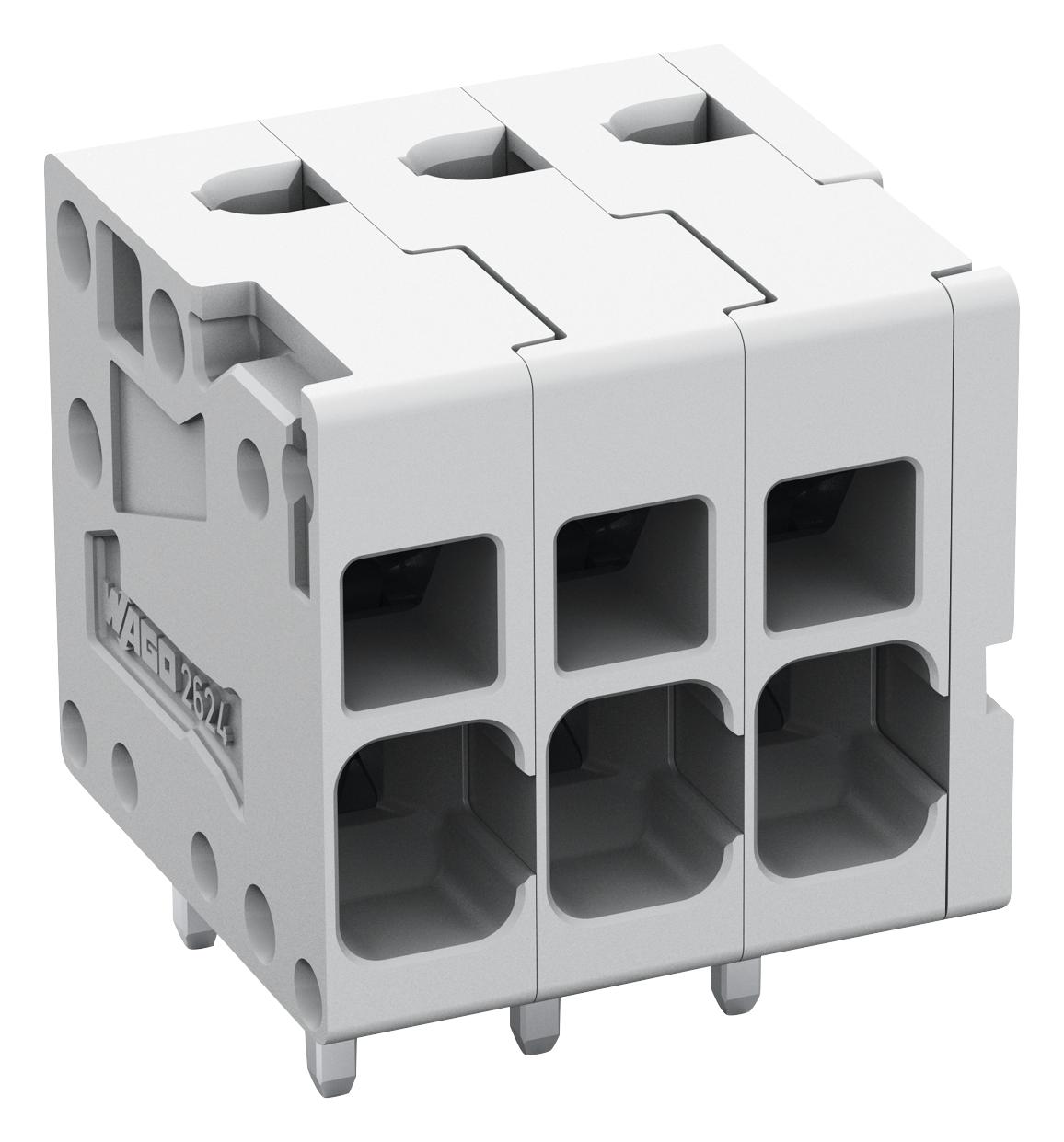

WAGO 26241104 4mm PCB Terminal Block
The WAGO 2624-1104 is a robust and reliable PCB terminal block ideal for various industrial applications requiring secure and efficient power distribution. Its Push-in CAGE CLAMP connection simplifies conductor termination, while the compact design and multiple approvals (UL, CSA, VDE) ensure compatibility and safety. The terminal block is suitable for panel feedthrough applications and offers excellent performance in demanding environments.
Authorized Distributors
Source:Master Electronics
Part No:2624-1104
Stock:15
Inv Date:06-04-2026
Price: Unit price: $3.73
Buy/RFQ:
Source:Onlinecomponents.com
Part No:2624-1104
Stock:15
Inv Date:06-04-2026
Price: Unit price: $3.73
Buy/RFQ:
Source:Future Electronics Corporate
Part No:2624-1104
Stock:90
Inv Date:06-04-2026
Price: Unit price: $3.09
Buy/RFQ:
WAGO 26241104 4mm PCB Terminal Block Specifications:
- Pin spacing: 5 mm
- Number of poles: 4
- Connection technology: Push-in CAGE CLAMP®
- Solid conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Fine-stranded conductor: 0.2 … 6 mm² / 24 … 10 AWG
- Fine-stranded conductor with insulated ferrule: 0.25 … 2.5 mm²
- Fine-stranded conductor with uninsulated ferrule: 0.25 … 2.5 mm²
- Fine-stranded conductor with twin ferrule: 0.25 … 1.5 mm²
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Rated voltage (III/3): 320 V
- Rated surge voltage (III/3): 4 kV
- Rated voltage (III/2): 400 V
- Rated surge voltage (III/2): 4 kV
- Rated voltage (II/2): 630 V
- Rated surge voltage (II/2): 4 kV
- Rated current: 41 A
- Rated voltage UL (Use Group B): 300 V
- Rated current UL (Use Group B): 26 A
- Rated voltage UL (Use Group D): 300 V
- Rated current UL (Use Group D): 10 A
- Rated voltage CSA (Use Group B): 300 V
- Rated current CSA (Use Group B): 26 A
- Rated voltage CSA (Use Group D): 300 V
- Rated current CSA (Use Group D): 5 A
- Material: Polyamide (PA66)
- Flammability class per UL94: V0
- Weight: 6.4 g
- Limit temperature range: -60 … +105 °C
- Customs tariff number: 85369010000
- GTIN: 4055143578325
- Solder pin length: 4 mm
- Solder pin dimensions: 0.8 x 1 mm
- Drilled hole diameter with tolerance: 1.3 mm (+0.1)
