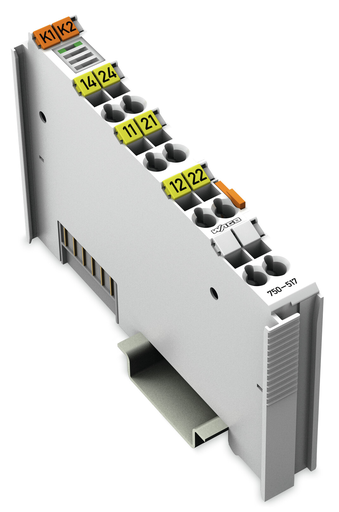

WAGO 750517 Relay Module
The 750-517 is a two-channel potential-free relay output module designed for automation and process control applications. It transmits control signals from the automation device to connected actuators via digital outputs. The relay is triggered by the internal system voltage and features electrically isolated normally open (NO) contacts. An LED indicator shows the relay's switched status. The module uses silver alloy contact technology, is mounted on a DIN 35 rail, and employs CAGE CLAMP® connection technology. It has a minimum mechanical life of 5 million switching operations and a minimum electrical life of 1 million switching operations at 1A/250VAC. The device offers an IP20 protection rating and operates within a temperature range of 0 to 55°C.
WAGO 750517 Relay Module Specifications:
- Number of outputs: 2 changeover contacts
- Max. switching voltage: 250V AC / 300V DC
- Min. switching current: 100 mA / 12 VDC
- Max. switching current: 1A at 40V DC; 0.15A at 300V DC
- Max. switching frequency: 6 cycles/min
- Pull-in time: 8 ms
- Contact material: Silver alloy
- Internal potential-free relay outputs
- Potential free contacts with 1.5 kV isolation
- Protection rating: IP20
- Temperature range: 0°C to 55°C
- Mechanical life: 5 million operations
- Electrical life: 1 million operations at 1A/250VAC
- Mounting: DIN 35 rail
- Connection technology: CAGE CLAMP®
- Conformity: EN 61000-2, EN 61000-4, marine certifications
Buy the WAGO 750517 – Reliable Relay Module for Industrial Applications
Purchase the WAGO relay module online today to enhance your automation system's reliability. Designed for industrial environments, it features two electrically isolated changeover contacts, high switching capacity, and DIN rail mounting. Ideal for process control, its robust contact technology ensures long-lasting performance with a mechanical life of 5 million operations. This module offers IP20 protection, operates within a wide temperature range, and simplifies wiring with CAGE CLAMP® connectors. Secure your automation needs efficiently with this high-quality relay module available for quick online ordering.
Order your WAGO Series 750517 relay module today and ensure dependable automation control with high switching capacity and robust design.
Frequently Asked Questions
Where can I buy WAGO 750517?
You can click on the BUY or RFQ button to purchase 750517 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 750517?
You can download the 750517 datasheet or visit the WAGO website for support.
Who is the manufacturer of 750517?
WAGO
