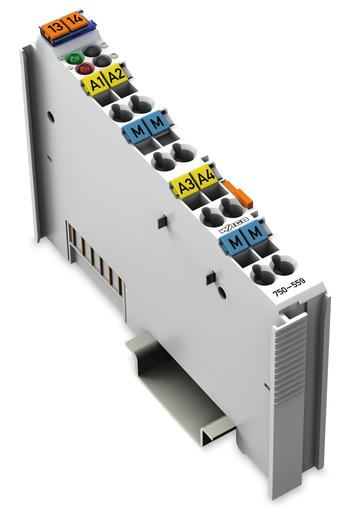

WAGO 750559 Analog Output Module
The WAGO 750-559 analog output module is designed for creating standardized analog signals of ±10V or 0-10V. It provides electrically isolated outputs with a resolution of 12 bits, ensuring reliable signal transmission in industrial environments. The module is powered by the system voltage and features a common potential for all output channels, simplifying integration and reducing wiring complexity. Suitable for a wide range of applications including process control, machine automation, and building automation, the 750-559 offers robust performance and ease of use. It is also available with or without connectors, and supports various wiring options including CAGE CLAMP® terminals.
WAGO 750559 Analog Output Module Specifications:
- No. of outputs: 4
- Current consumption max. (internal): 125 mA
- Voltage supply: via system voltage DC/DC
- Signal voltage: ±10 V (750-557, 753-557) / 0-10 V (750-559, 753-559)
- Load impedance: > 5 kΩ
- Resolution: 12 bits
- Conversion time (typ.): 10 ms
- Output filter settle time typ.: 100 ms
- Measuring error (25 °C): ± 0.1 % of the full scale value
- Temperature coefficient: ± 0.01 % /K of the full scale value
- Isolation: 500 V system/supply
- Bit width: 4 x 16 bits data
- Control/status bits: 4 x 8 bits (option)
- Wire connection: CAGE CLAMP®
- Cross sections: 0.08 mm² ... 2.5 mm² / AWG 28 ... 14
- Stripped lengths (750 / 753 Series): 8 ... 9 mm / 0.33 in / 9 ... 10 mm / 0.37 in
- Width: 12 mm
- Weight: 53.5 g
- EMC immunity: acc. to EN 50082-2 (1996)
- EMC emission: acc. to EN 50081-1 (1993)
- EMC marine applications: acc. to Germanischer Lloyd (2003)
- rUL 508: 4 rANSI/ISA 12.12.01 Class I, Div. 2, Grp. ABCD, T4
- EN 60079-15: I M2 / II 3 GD Ex nA IIC T4
